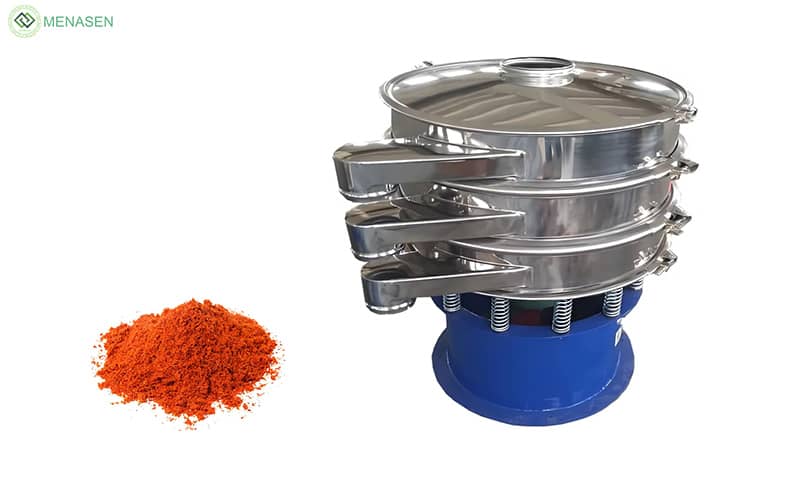

Industrial Spice Herbs Millets Powder Rotating Vibrating Sieve Machine

Industrial Spice Herbs Millets Powder Rotating Vibrating Sieve Machine

1.Lead time: 7 days.

2. Carbon Steel + SUS304.

3. Voltage: 220V 3ph 50HZ

4. Diameter: 600mm 800mm 1000mm

Vibratory screen sifter is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation, low noise, high efficiency, need only 3-5 minutes to rapidly replace the screen, all closed structure. Used to sieve guanule, powder and liquid.

Fine Screening Machine

1. Filtration: Remove the particles from the liquid.

2. Grading: Classification is put powder and particles of different sizes into particles. With 1 to 5 layers of screens, one three decks vibrating screen can separate 4 size the particle continuously,and have the narrow particle size range control.

3. Impurity: In high flow process, the machine can remove large particles or particles with lower percentage quickly.

Working Vedio of MNS-S800 vibrating sieve

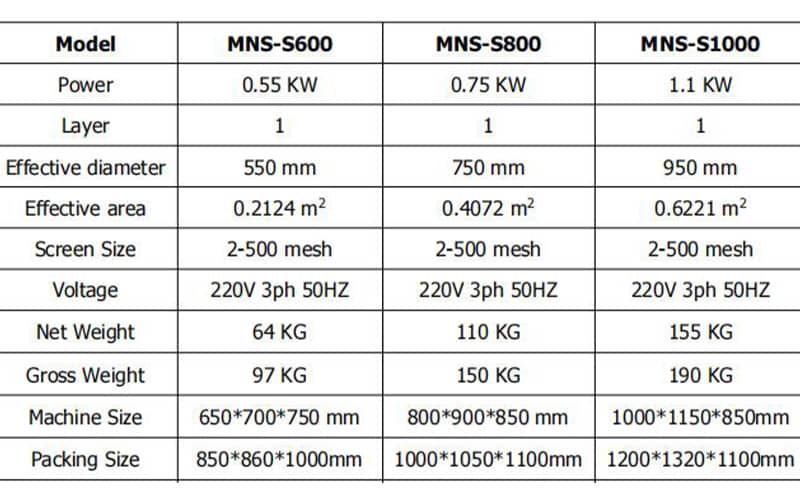

Specification of Vibrating Screens

vibrating Sieve

vibrating Sieve

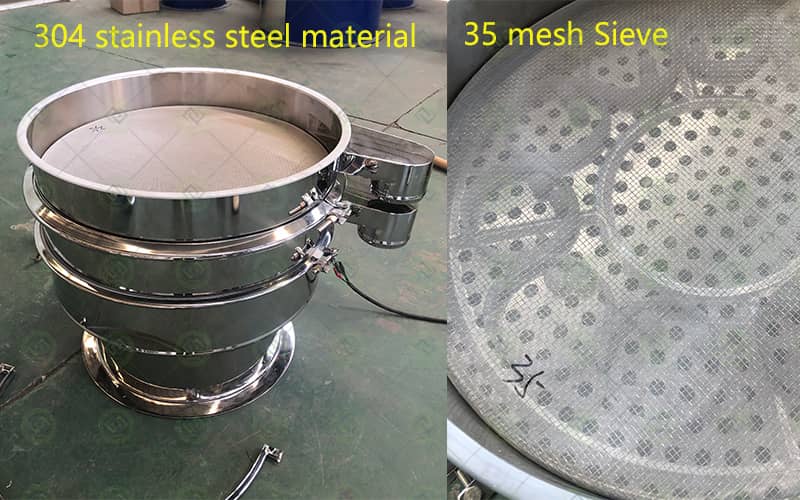

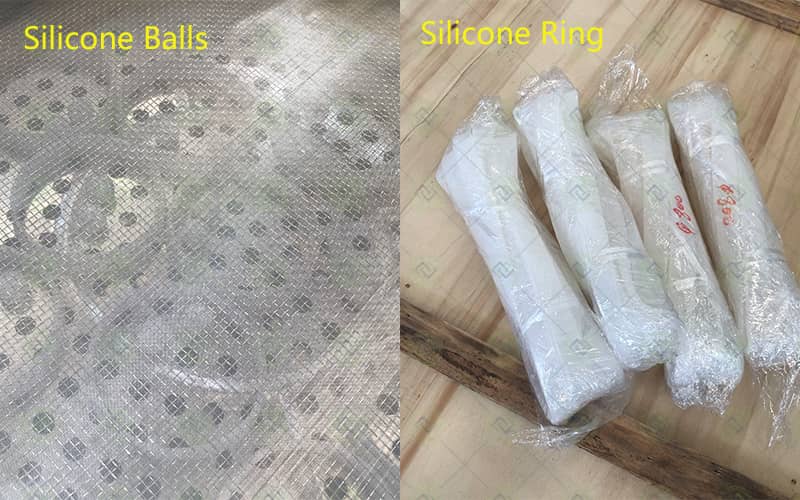

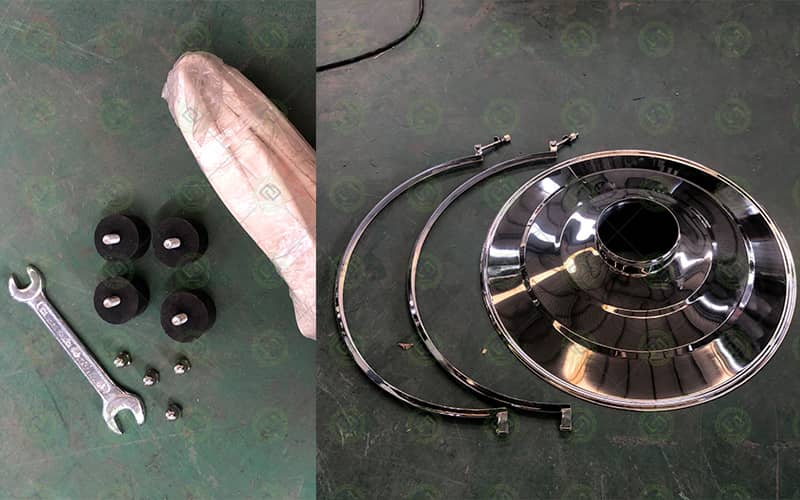

Spare Parts and Details

vibrating Sieve

vibrating Sieve

vibrating Sieve

vibrating Sieve

Characteristics of Vibrating Screen

1.The widest range of screening: applicable to all kinds of particles, powder, and slurry filter.

2.The mesh not block: a variety of specially designed screen of the cleaning device make the probability of blocking the mesh approach the minimum.

3.Single layer and multi-layer separation; Single layer filtration, once to achieve the requirements.

4. Easy to change the screen; no deformation of the mesh, long service life of screen, high efficiency.
