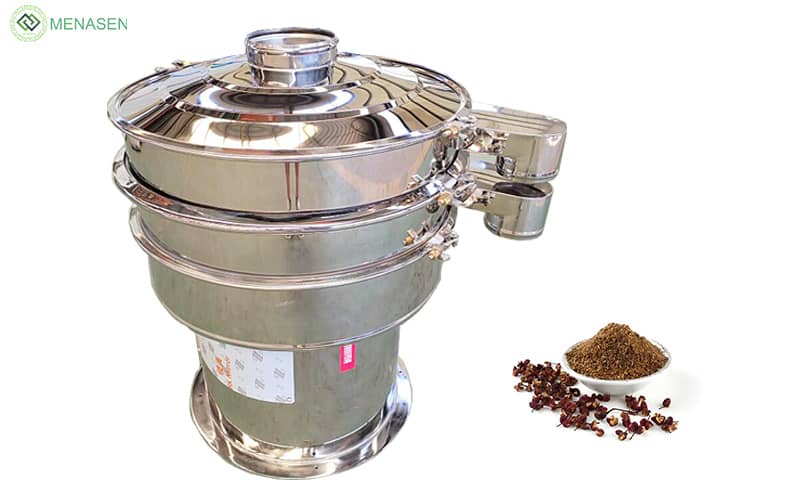

Automatic Millet Spice Powder Vibrating Sieve
1. Vibrating screen separation and discharge
2. Replaceable screen
3. Customizable stainless steel base
4. Lead time: 7 days
1. Vibrating screen separation and discharge
2. Replaceable screen
3. Customizable stainless steel base
4. Lead time: 7 days
Rotary vibrating screen is an efficient and high-precision screening equipment that utilizes the high-frequency vibration generated by the vibrating motor to generate rotational motion of materials on the screen surface, thereby completing the screening process.
1. Filtration: Remove the particles from the liquid.
2. Grading: Classification is put powder and particles of different sizes into particles. With 1 to 5 layers of screens, one three decks vibrating screen can separate 4 size the particle continuously,and have the narrow particle size range control.
3. Impurity: In high flow process, the machine can remove large particles or particles with lower percentage quickly.
Model | MNS-S600 | MNS-S800 | MNS-S1000 | MNS-S1200 |
Power | 0.55 KW | 0.75 KW | 1.1 KW | 1.5 KW |
Layer | 1 | 1 | 1 | 1 |
Effective diameter | 550 mm | 750 mm | 950 mm | 1150 mm |
Effective area | 0.2124 m2 | 0.4072 m2 | 0.6221 m2 | 0.9331 m2 |
Screen Size | 2-500 mesh | 2-500 mesh | 2-500 mesh | 2-500 mesh |
Voltage | 220V 3ph 50HZ | 220V 3ph 50HZ | 220V 3ph 50HZ | 220V 3ph 50HZ |
Net Weight | 64 KG | 110 KG | 155 KG | 199 KG |
Gross Weight | 97 KG | 150 KG | 190 KG | 250 KG |
Machine Size | 650*700*750 mm | 800*900*850 mm | 1000*1150*850mm | 1250*1450*880mm |
Packing Size | 850*860*1000mm | 1000*1050*1100mm | 1200*1320*1100mm | 1450*1640*1140mm |
Notice: Standard type is carbon steel base, can also be customized stainless steel base.
1. Standard type is Carbon Steel. For food processing industry, we advise choose 304 Stainless Steel.
2. For powder situation, we advise clients extra purchase some sieves.
3. Carbon Steel Support Look.
4. Single layer sieve (2 outlets). Two layer sieve, (3 outlets). 3 Layer sieve, (4 outlets)

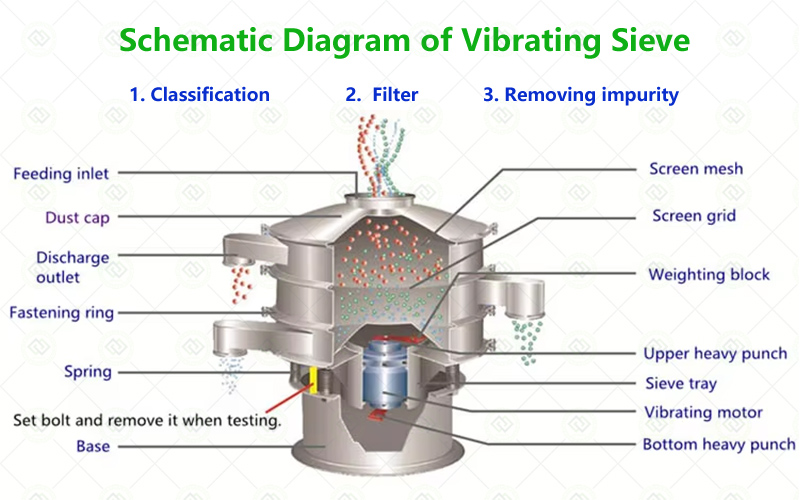

This machine is composed of the vertical vibration motor, a sieve bottom, a mesh frame, sieve room, rubber vibrating bowl, and all fastening pieces etc. It can be operated for the sorting purpose either in single sieve or multi-sieves with a compact structure, easy operating and repairing, smooth running, low noise, large target materials-treating, good fineness, and wide applicability etc.
