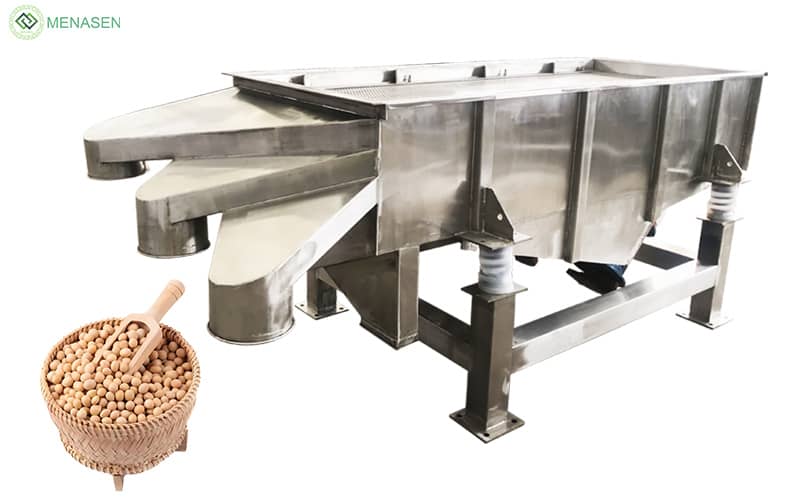

Industrial linear vibrating screen is a commonly used screening device that is mainly used for the screening and classification of powdery and granular materials. It is widely used in industries such as grain, plastics, abrasives, chemicals, building materials, and fertilizers.

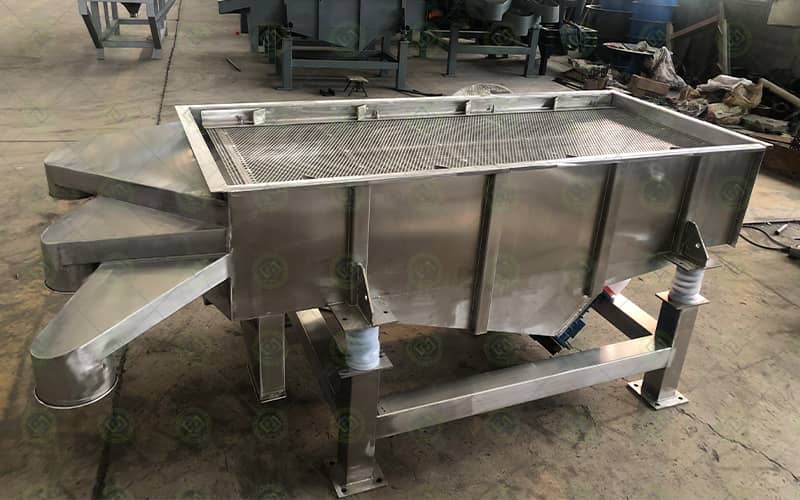

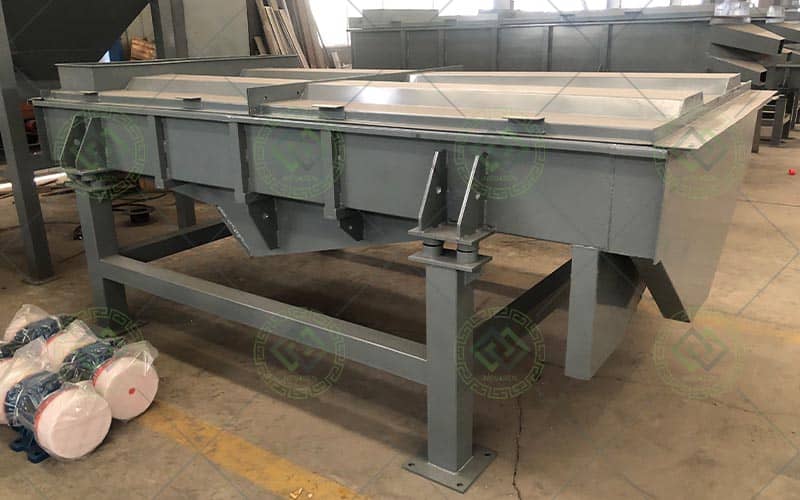

It is mainly composed of a screen box, screen mesh, two vibration motors, springs and supporting base.
It adopts double exciters to drive. When the two exciters rotate synchronously and in reverse direction, the vibration force generated by their eccentric blocks cancels each other out in the direction parallel to the motor axis and stacks into one combined force in the direction perpendicular to the motor axis.
Therefore, the motion trajectory of the screening machine is a straight line.
| Model | Layer | Power | Sieve Size | Sieve Mesh | Frequency |
| MNS-ZD1020 | 1-6 layer | 0.75-1.5 KW | 1000*2000 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1025 | 1-6 layer | 0.75-1.5 KW | 1000*2500 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1030 | 1-6 layer | 1.1-1.5 KW | 1000*3000 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1040 | 1-6 layer | 1.5-2.2 KW | 1000*4000 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1224 | 1-6 layer | 1.5-2.2 KW | 1200*2400 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1240 | 1-6 layer | 1.5-3.0 KW | 1200*4000 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1530 | 1-6 layer | 1.5-3.0 KW | 1500*3000 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD1540 | 1-6 layer | 2.2-3.0 KW | 1500*4000 mm | 2-325 mesh | 960 times/ min |
| MNS-ZD2050 | 1-6 layer | 3.0-3.7 KW | 2000*5000 mm | 2-325 mesh | 960 times/ min |
1. Due to different industry, use different material for machine body. Sand industry, use carbon steel. Food processing industry, use 304 stainless steel.

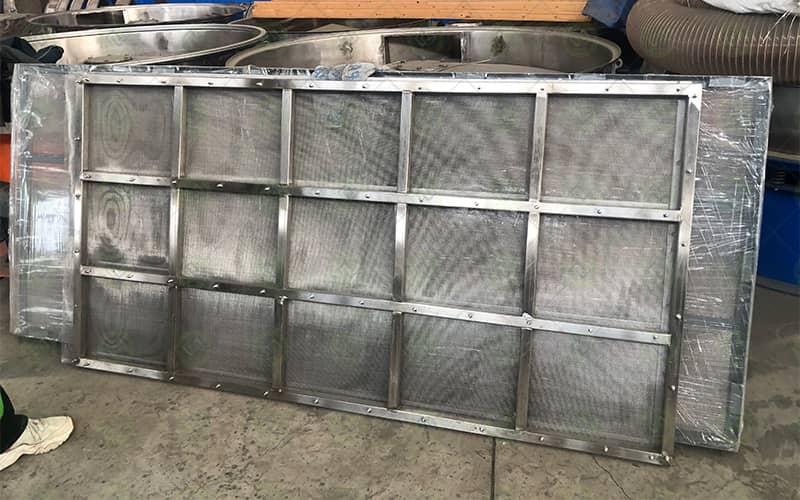

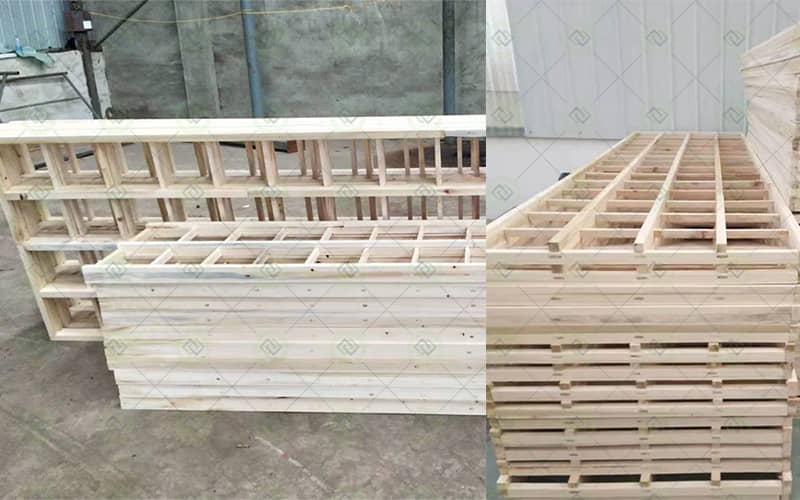

2. Sieving different item, sand industry use wooden sieve. Food processing industry use stainless steel sieve.

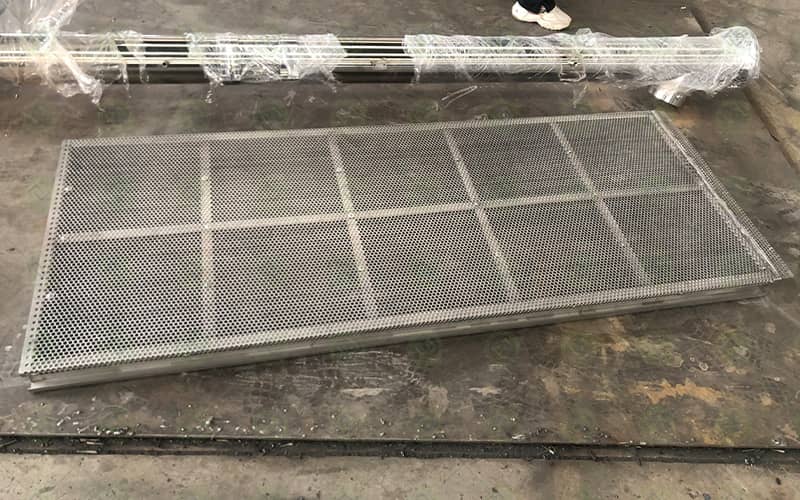

3. Based on different material, could choose different sieve type.
1. Chemical industry: resin, paint, coating, industrial powder, cosmetics, herbal powder, plastic, PVC powder, rubber, fertiliser, soda ash, etc.
2. Food industry: sugar powder, starch, wheat flour, salt, rice powder, milk powder, soybean milk, egg powder, spices, food additives, feed, black soldier fly larvae and frass, etc.
3. Metals and metallurgical mining: electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, all kinds of sand, stone, etc.
4. Other industries: additives, activated carbon, graphite, broken battery, etc.
1. Continuous production, single layer or multi-layer automatic classification and screening.
2. Fully enclosed structure, no dust spill.
3. Using vibration motor energy saving and low noise.
4. start quickly, parking is stable.
5. Easy to install, easy to operate and maintain.
6. The screen has high utilization rate, large unit area, not easy to blink, and easy to replace.
7. The screening accuracy is over 96% and the processing capacity is large.
