Stainless Steel Circular Swing Vibrating Screen Machine

The oscillating screen is a low-frequency rotary vibrating screen imitating artificial shaking.

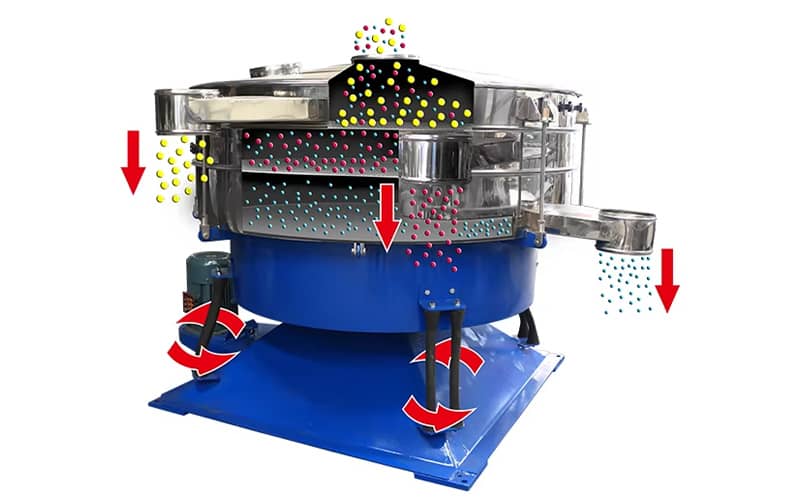

Its principle is: the instantaneous motion is the synthesis of the displacement along the radial direction and the circular motion with the displacement as the axis (spiral motion), and the excitation of the eccentricity can be adjusted.

The non-linear three-dimensional movement is produced by the device, and the material also produces the same movement similar to manual operation, so as to achieve the purpose of screening, and then cooperate with the screening attachment to obtain a more ideal screening effect;

Suitable for round, cylindrical, and sheet shapes and even materials with regular shapes that are easy to block the net and require precise screening.

Specification of Swing Screen

Model: MNS-S1000 (1.5 kw) 1-4 Layers

Model: MNS-S1200 (2.2 KW) 1-4 Layers

Model: MNS-S1500 (3.0 KW) 1-4 Layers

Working Vedio of Swing Screens

Details of Swing Vibrating Sieve

1. Matertial can use 304 stainless steel, standard is carbon steel. Food processing industry advise use 304 stainless steel.

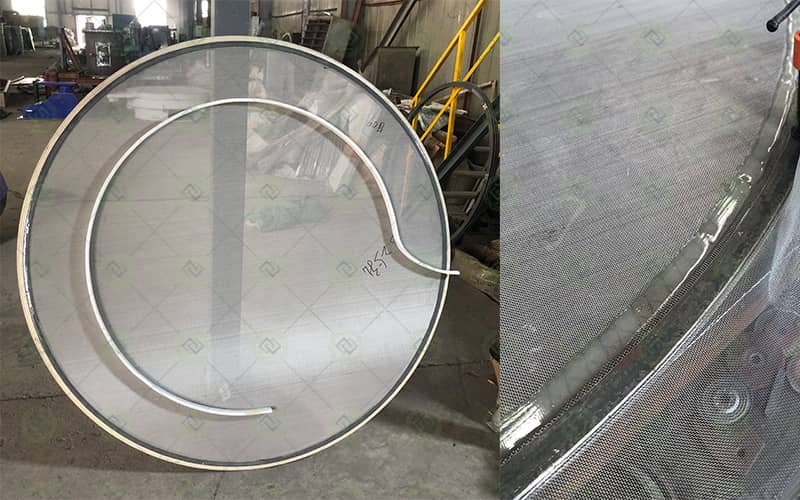

2. Diameter is more big, use motor power will be big. The mesh size of the screen can be selected from 500 mesh to 0.028mm.

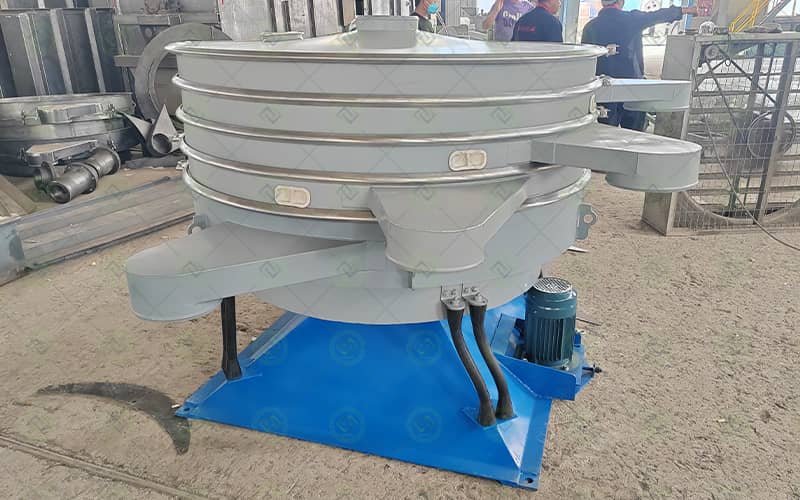

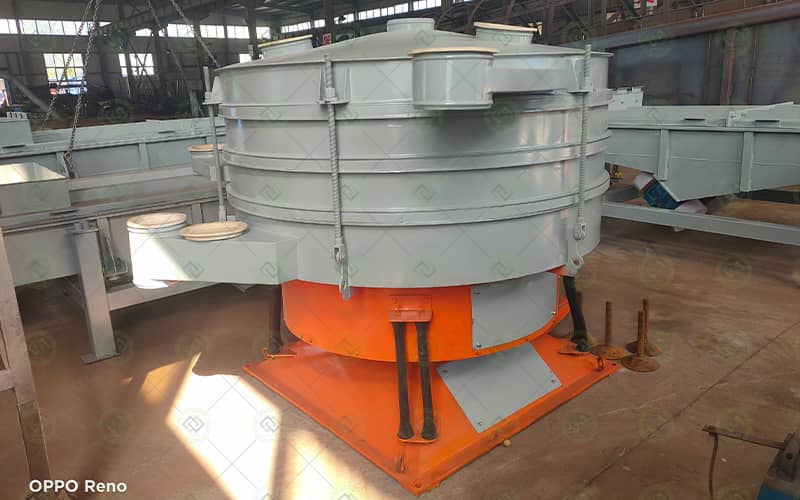

3. Whole machine look.

Features and Advantages of Swing Sieve Vibrating Machine

1. Large capacity than normal vibrating screen.

2. Up to six stage separation, and screening accuracy is from 95% to 99%

3. Using efficient sieve cleaning system, such as sil-cone rubber ball, ultrasonic sieve cleaning system

4. Without blinding sieve, sealed dust and safe op-eration.

5. No vertical vibration force ,so the screening parts life increase and reduce maintenance;

6. With low noise which is less then 75 db.  Optimize the weight balance, foundation dynamic load is low.
