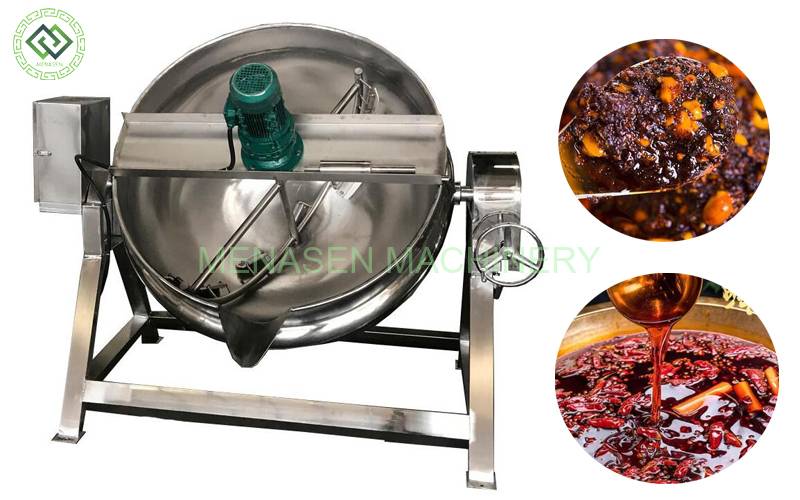

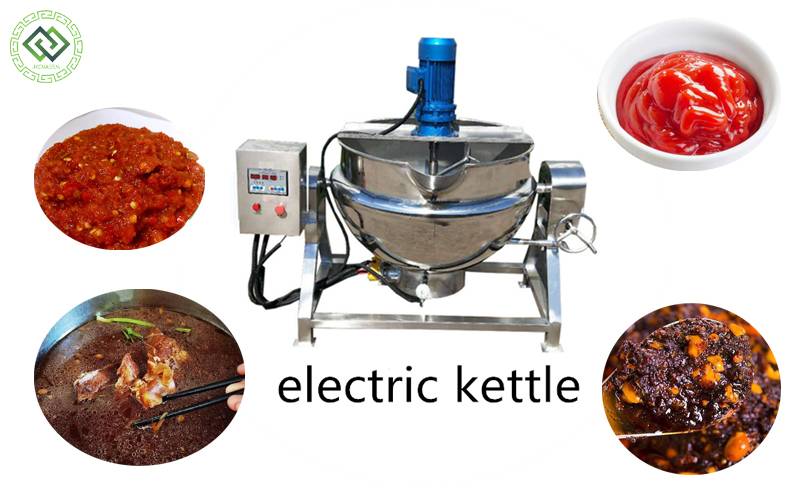

Electric Heating Jacketed Kettle with Agitator
1. Electric heating way
2. Heating speed is fast
3. Heating temperature can be set
4. SUS304 material
This electric heat jacketed kettle has the characteristics of large heating area, high thermal efficiency, uniform heating, boiling time of liquid material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safety and reliability.
Stirring jacketed kettle is widely used in the processing of all kinds of food, and can also be used in large restaurants or canteens to cook soup, cook vegetables, stew, congee, etc. It is a good equipment for improving efficiency, shortening time and improving working conditions in food processing.
Since the electric heating jacketed pot has a temperature control function, it is suitable for cooking tasks that require precise temperature control, such as melting chocolate, making cheese fondue, stewing soup, cooking porridge, cooking noodles, frying food, cooking hot pot and other cooking tasks.
Pot diameter: 800mm
Pot depth: 600 mm
Heating power: 18 Kw
Stir power: 1.1KW
Voltage: 220V 1ph 50HZ
Net| Gross weight: 195 KG/240 KG
Machine Size: 1140*940*1250 mm
Packing Size: 1340*1090*1650 mm
Pot diameter: 900 mm
Pot depth: 650mm
Heating power: 24KW
Stir power: 1.1 KW
Voltage: 220V 1ph 50HZ
Net| Gross weight: 215 KG/260 KG
Machine Size: 1240*950*1250 mm
Packing Size: 1380*1180*1650 mm
Pot diameter: 1000 mm
Pot depth: 700mm
Heating power: 36KW
Stir power: 1.5KW
Voltage: 220V 1ph 50HZ
Net| Gross weight: 245 KG/ 290 KG
Machine Size: 1340*990*1300 mm
Packing Size: 1540*1180*1650 mm
Pot diameter: 1100 mm
Pot depth: 750mm
Heating power: 36KW
Stir power: 1.5KW
Voltage: 220V 1ph 50HZ
Net| Gross weight: 285 KG/340 KG
Machine Size: 1440*990*1300 mm
Packing Size: 1650*950*1690 mm
1. Above stir motor is normal motor, if need change it into variable frequency motor, add extra charge.
2. Voltage can be changed according to client’s requirement.
3. Working hour exceed 500h, should be replace heat transfer oil.
4. Heat transfer oil should be bought by client self, because sea shipping transportation require good can not carry oil or battery.

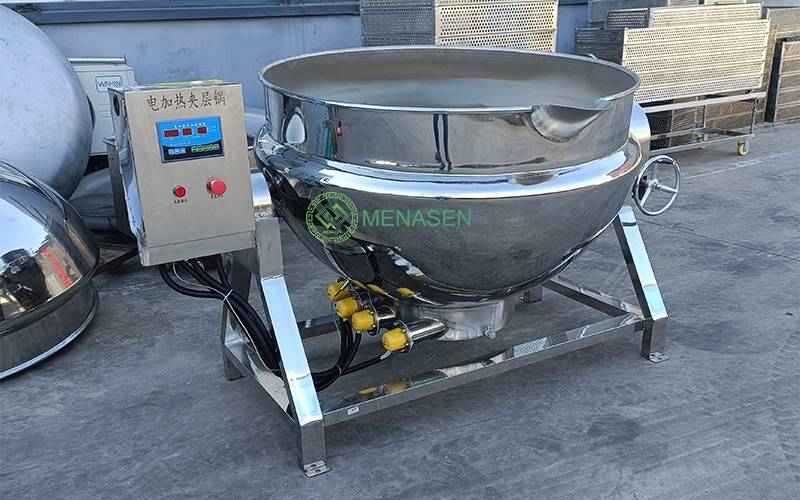

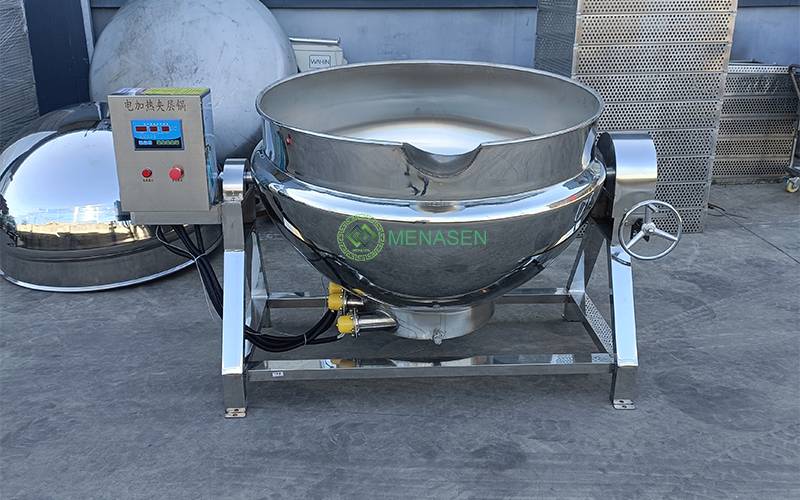

1. This is no agitator, below yellow is heating tube. Left is control cabinet.
2. Whole machine is made of SUS304 material.
