Chain Type Automatic Garlic Separator Peeler Processing Line
1. Pneumatic type, garlic cloves no damage
2. Large capacity, 200-1000 KG/h
3. 304 Stainless steel
4. Can make small processing line
1. Pneumatic type, garlic cloves no damage
2. Large capacity, 200-1000 KG/h
3. 304 Stainless steel
4. Can make small processing line

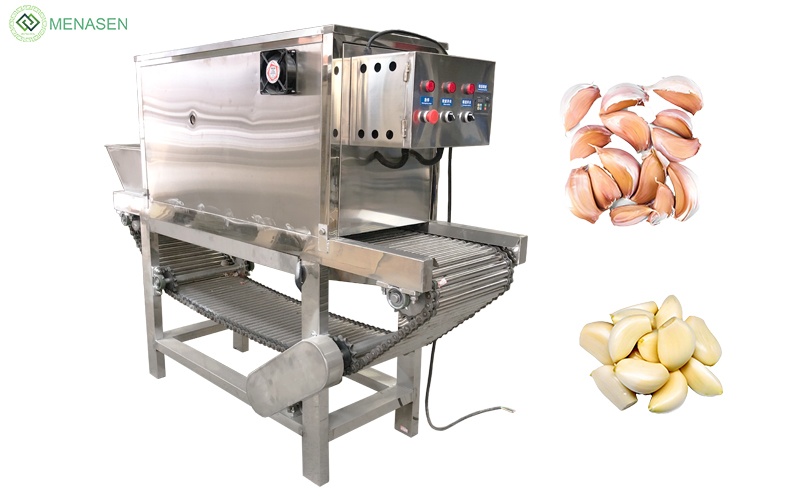

The chain-type garlic peeling machine is suitable for dry garlic. When garlic is dry, the peeling rate is as high as 95%, the garlic skin and garlic clove will be automatically separated.
It adopts the principle of pneumatic, the garlic can be peeled without soaking in water. The divided garlic cloves will enter the peeling bin through the chain belt, when passing through the peeling bin, the garlic clove will be separated continuously by the strong airflow generated by the high-power air compressor.
No friction from hard objects during peeling process, so the output peeled garlic cloves are not damaged and the integrity & freshness will be preserved.

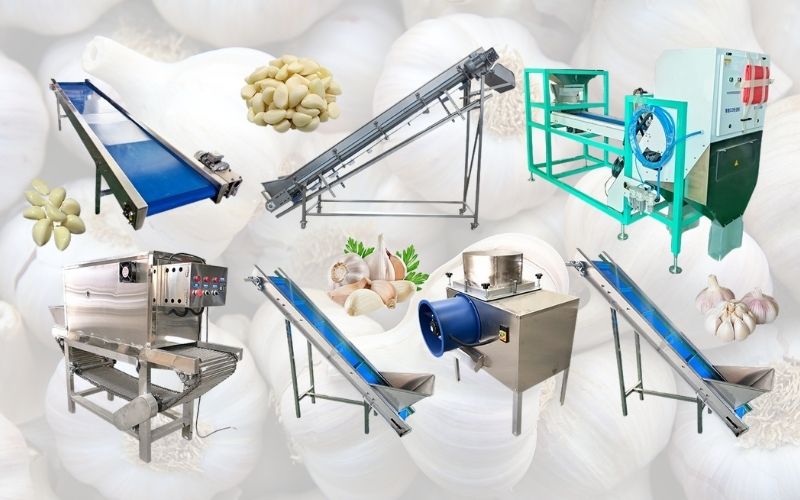

1. Lifting Conveyor
Power: 0.75 KW
Convey belt size: 300 mm
Convey belt material: PVC
Frame: Stainless Steel
Voltage: 380V 3ph 50HZ
Net weight: 100KG
Gross weight: 140 KG
Machine size: 2200*550*1450 mm
Plywood case: 2400*400*1700 mm
Function: Convey garlic bulbs into separator.
2. Garlic Bulbs Separator
Model: MNS-FB500
Capacity: 500 KG/H
Power: 1.2 KW
Voltage: 380V 3ph 50HZ
Net weight: 120 KG
Gross weight: 140 KG
Machine size: 970*760*1020 mm
Plywood case: 1150*880*1270 mm
Function: Separate garlic bulbs into garlic cloves.
3. Lifting Conveyor
Total length: 2000mm
Power: 0.75 KW
Convey belt width: 300 mm
Convey belt material: PVC
Frame: Stainless Steel
Voltage: 380V 3ph 50HZ
Net weight: 100 KG
Gross weight: 130 KG
Machine size: 2000*550*1100 mm
Plywood case: 2200*700*1380 mm
Function: Convey garlic cloves into peeling machine.
4. Garlic Cloves Peeling Machine
Model: MNS-C200
Capacity: 200 KG/H
Power: 1.15 KW
Voltage: 380V 3ph 50HZ
Net weight: 260 KG
Gross weight: 310 KG
Machine size: 1350*500*1370 mm
Plywood case: 1550*680*1670 mm
Function: Continuous type, continuous feeding, better effect and higher efficiency.
5. Garlic Cloves Selecting Worktable
Total length: 3000 mm
Power: 0.75 KW
Convey belt: 500 mm
Convey belt material: PVC
Frame: Stainless Steel
Voltage: 380V 3ph 50HZ
Net weight: 150 KG
Gross weight: 180 KG
Machine size: 3000*750*800 mm
Plywood case: 3200*900*1050 mm
Function: Convey and worker select peeled garlic cloves.
6. Lifting conveyor
7. Garlic cloves color sorter.
