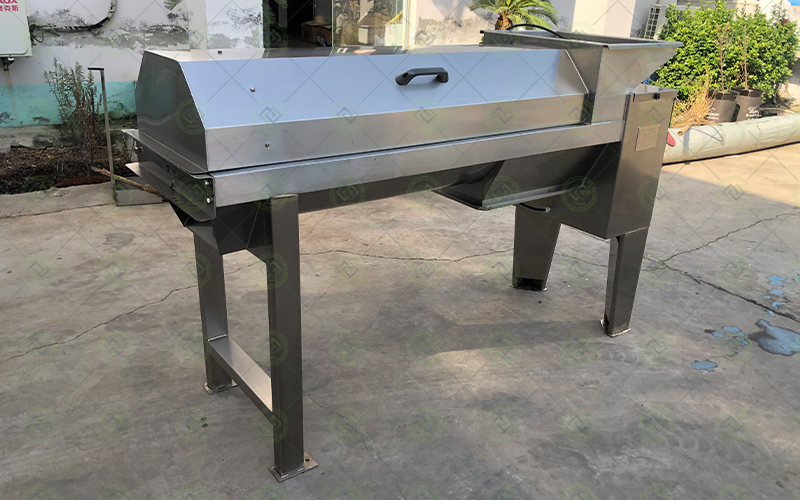

The pomegranate peeing and deseeding machine is designed and developed based on the characteristics of pomegranate fruits. The main characteristics technology are: high yield and high juice yield.
This equipment relies on the continuous tapping of Archimedean spiral lines to ensure the integrity of the fruit peel to the greatest extent possible and reduce the entry of bitter tannins into the juice.
Pomegrate Peeler Design is very reasonable and stable.

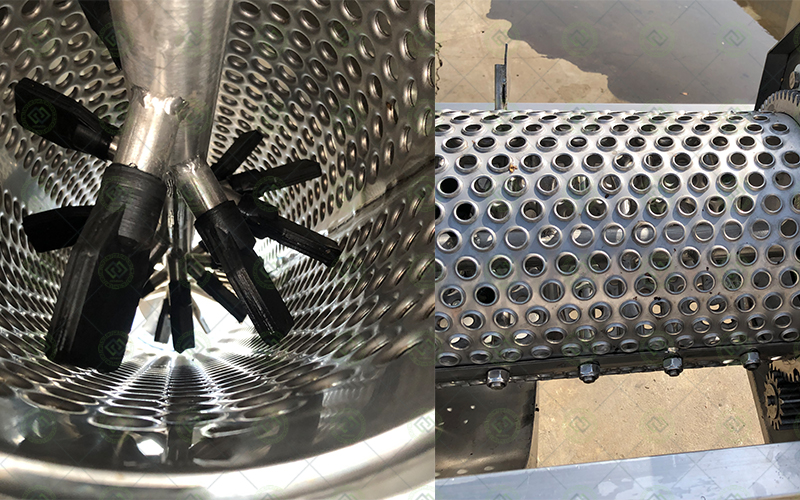

Inside rotary screen for drop into pomegrate seed.
The whole pomegranate is coarsely crushed from the feeding hopper through the crushing device, so that the pomegranate peel is split into 2-4 pieces.
The crushed pomegranate is pushed to the dispersing device through a spiral.
The dispersing device is a spiral formed by two beating sticks.
The pomegranate seeds are broken into pieces, and the broken pomegranate seeds fall through the mesh holes of the rotary screen into the guide, and are transported to the fruit outlet through the spiral on the rotary screen and fall out of the machine;
the pomegranate peel is formed into a spiral shape by the breaking device. Push it to the slag outlet at the rear of the equipment.
