MNS-WL420B Leafy Veggies Salad Washing Processing Line
1. Automatic processing line
2. Washing Capacity is huge
3. 304 Stainless steel
4. Lead time 20 days
1. Automatic processing line
2. Washing Capacity is huge
3. 304 Stainless steel
4. Lead time 20 days
Salad production line is a state-of-the-art system designed to processing the complete preparation of fresh vegetable salads. From vegetable sorting, cutting, washing Sterilization, dewatering and packaging, every stage is optimized for efficiency, hygiene, and quality. Used for washing and draining vegetables cut into slices and segments, filtering and outputting vegetable residues, and cleaning out light or smaller heavy impurities such as sand, dust, pebbles, etc. in the materials.
The whole machine is divided into two main parts: cleaning and impurity removal and vibration and draining.
The inside of the cleaning cylinder is semi-circular, with no dead corners for easy cleaning.
There are multiple water flow control systems inside the water tank. Adjusting each water flow control can clean a variety of fruits and vegetables.
Vibration Some parts adopt high-quality vibrating arms, which have high vibration frequency and stable vibration.
The whole machine has reasonable design and good cleaning effect.
Capacity: 1000-1500 KG/H
Total Power: 6.53 Kw
Water Pump Power: 6 Kw ( 3Kw*2pcs)
Drum Rotate Power: 0.2 Kw
Vibration Pump Power: 0.13 Kw (0.065 Kw*2 pcs)
Slag Convey Power: 0.2 Kw (1pcs)
Net Weight: 720 KG
Gross Weight: 810 KG
Machine Size: 4300*1570*1850 mm
Packing Size: 1560*1790*2150 mm
Capacity: 800-1200 KG/H
Total Power: 6.33 Kw
Water Pump Power: 6 Kw ( 3Kw*2pcs)
Drum Rotate Power: 0.2 Kw
Vibration Pump Power: 0.13 Kw (0.065 Kw*2 pcs)
Slag Convey Power: No equip
Net Weight: 690 KG
Gross Weight: 780 KG
Machine Size: 4300*1250*1800 mm
Packing Size: 1560*1450*2080 mm

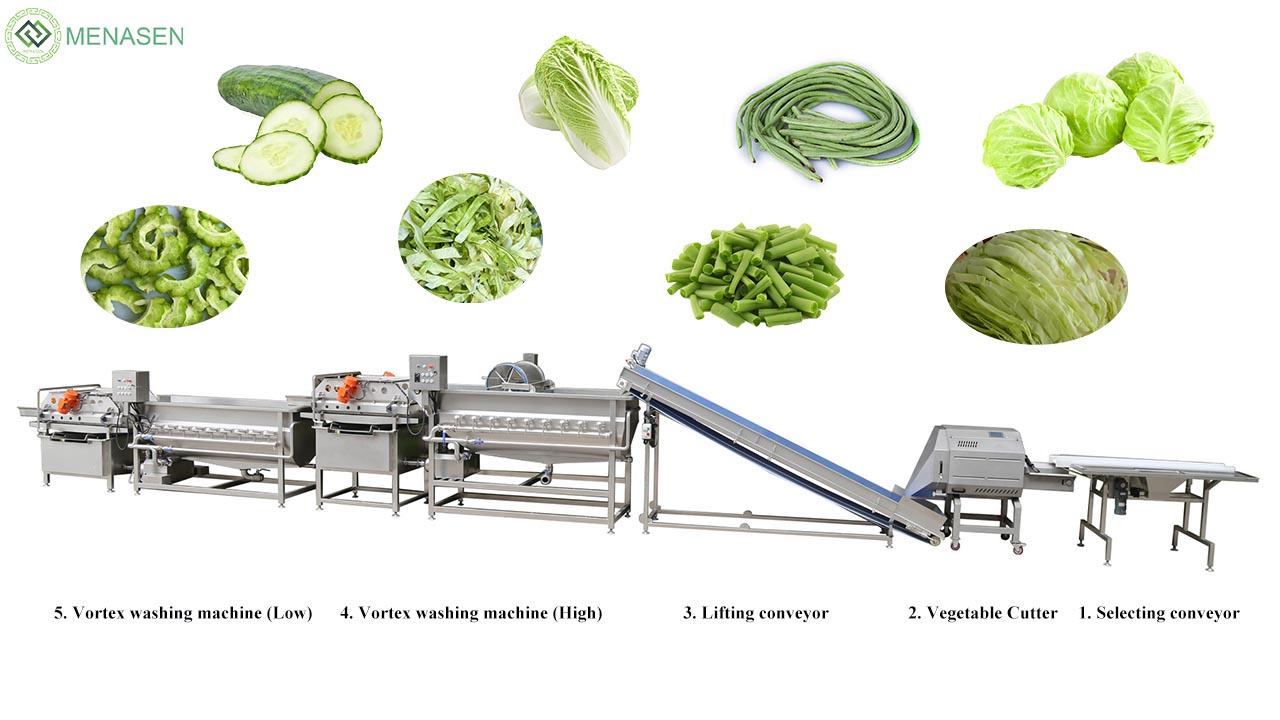

1. Selecting conveyor
Total Length: 2600mm
Function: Workers select good leafy vegetable and put it on convey belt, which can convey vegetable into vegetable cutter. Bad vegetable leaf will drop into vegetable trash can.
2. Leafy Veggies Cutting Machine
Model: MNS-305| MNS-306
Function: It is used to cut vegetables into slices ,chop and shred, with large output and adjustable cutting thickness.
3. Lifting Conveyor
Total length: 2800mm
Function: It is used to lift leaf vegetables and connect with vegetable washing machines. Adjustable belt tension and easy to clean.

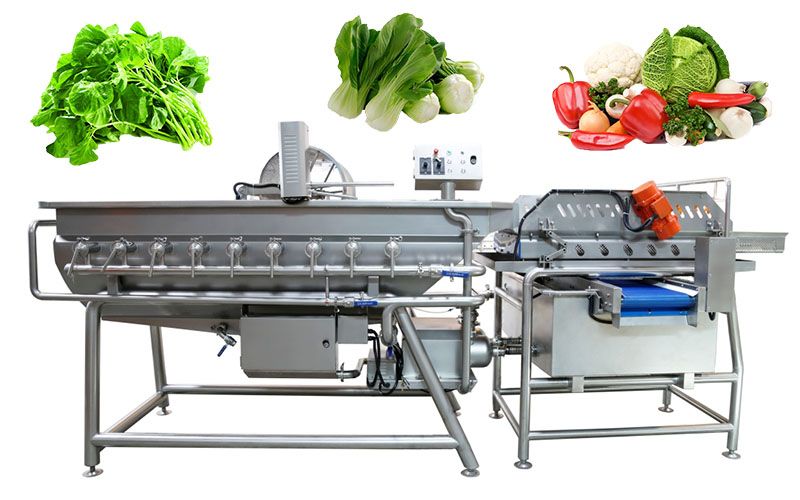

4. Vortex Washing Machine (High)
Model: MNS-WL420B
Function: The combination of three cleaning methods, such as air bubbles, circulating surfing and high-pressure spraying, is used to make the vegetables be thoroughly cleaned in all directions.
It is mainly used for vegetable cleaning after cutting and material cleaning.
It adopts eddy water circulation and vibration technology to make the material roll up and down to ensure that the material is cleaned in all directions without dead ends.
It is also equipped with a vibration cleaning device to make the material cleaning more thorough and remove debris.
5. Salad washing machine with low position (Optional)
Model: MNS-WL420B
Function: The combination of three cleaning methods, such as air bubbles, circulating surfing and high-pressure spraying, is used to make the vegetables be thoroughly cleaned in all directions.
6. Conveyor with double direction
Total length: 2000mm
Function: Two plastic buckets are placed on either side of the machine to collect the washed vegetables.
7. Vegetable centrifugal dehydrator
Model: MNS-TS420
Function: It uses the principle of centrifugation to dehydrate and dry the material to remove the moistureon the surface. It is suitable for removing surface water from various vegetable products, the time and the speed are adjustable, the dehydration rate can be controlled, and the material is not damaged. Equipped with touch screen for easy operate.
