Passion Fruit Juice Making Machine
1. Suitable for passion fruit,orange, mango.
2. The filter can block the seeds and juice and achieve separation.
3. SUS304 material.
4. Voltage can change.
5. Lead time: 7 days.
6. Sea shipping.
1. Suitable for passion fruit,orange, mango.
2. The filter can block the seeds and juice and achieve separation.
3. SUS304 material.
4. Voltage can change.
5. Lead time: 7 days.
6. Sea shipping.

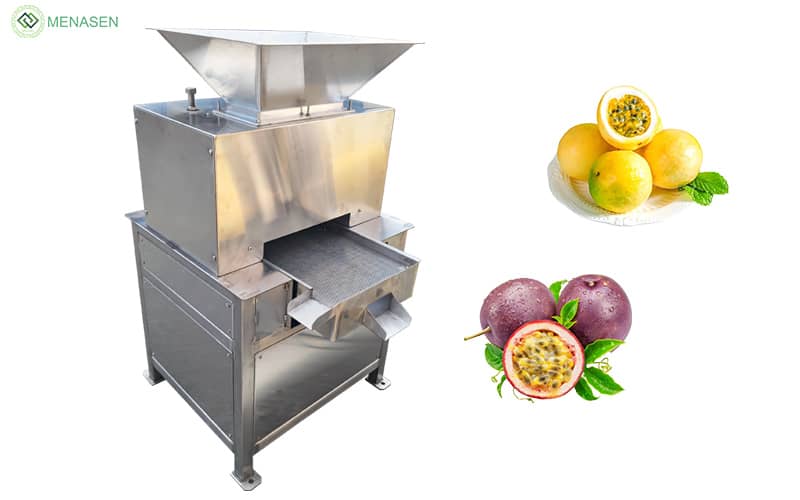

Our passion fruit juicing machine specifically designed for passion fruit juice extraction, which can quickly extract seeds and separate residue and juice. The machine is fully automated to complete passion fruit segmentation, seed extraction, and fruit meat extraction.

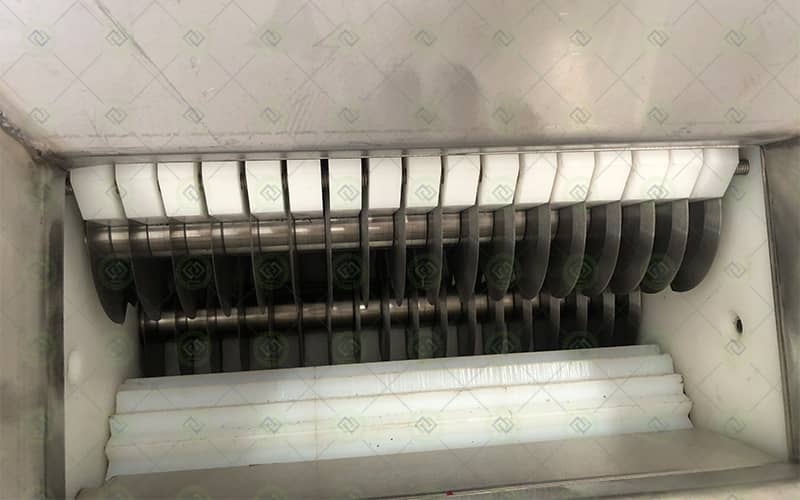

The passion fruit juicer mainly consists of three pressure rollers, one knife roller, one feeding roller, a feeding hopper, a pulp hopper, a skin hopper, a frame, and a transmission. When working, turn on the power and pour the material into the feeding hopper. The material first passes through the middle of the two knife rollers and is pressed into the middle of the two knife rollers by the feeding roller for cutting. before being removed from the skinThe bucket is discharged to achieve the purpose of extracting slurry. The machine is suitable for passion fruit, lemon, orange, etc.
Model: MNS-DG1000
Capacity: 1000 KG/H
Power: 1500W
Material: SUS304
Voltage: 380V
Weight: 197 KG
Machine size: 980*800*1310 mm
1. The whole machine is made of stainless steel 304, high quality, durable and health.

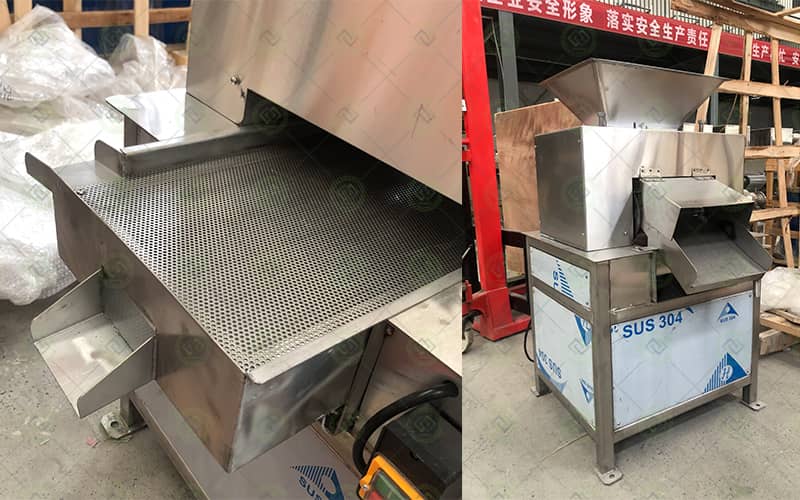

2. The machine is mainly composed of frame, reducer, feed hopper, two sets of cutter components, two sets of feed rollers, two sets of press rollers, juice hopper, slag outlet and other components.
3. Its main working principle: Turn on the power, pour the material into the feeding hopper, the feeding roller assists the feeding, the two sets of blades slice the fruit, and then the feeding roller feeds the fruit into the 1 Press between press rolls (press roll can be adjusted up and down by the gap adjustment device, so as to control the amount of fruit juice.)
4. The juice and part of the pulp are discharged from the juice hopper, and the skin and slag are discharged from the slag hopper, so as to achieve the purpose of juicing. The equipment is made of stainless steel except for the transmission parts.
This passion fruit extractor machine is suitable for juicing of kumquat, lemon, grapefruit, orange, pineapple, ginger, passion fruit, dragon fruit, mangosteen, citrus and other fruits. The fruit does not need to be peeled or graded, and the juice can be directly squeezed.
