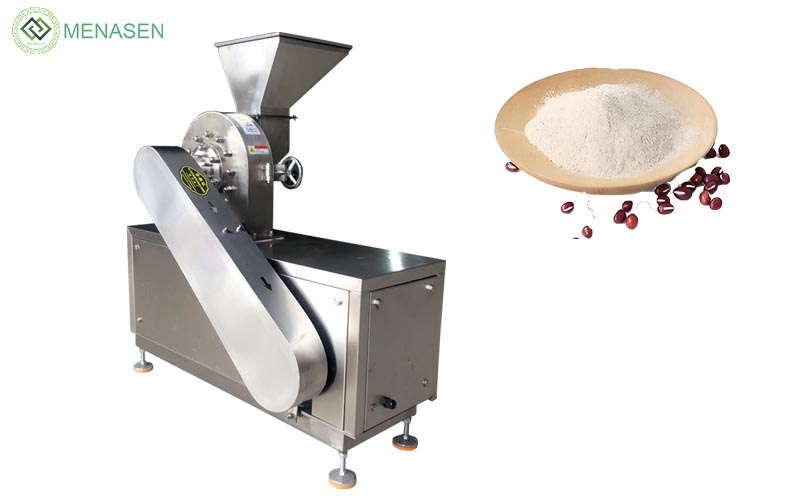

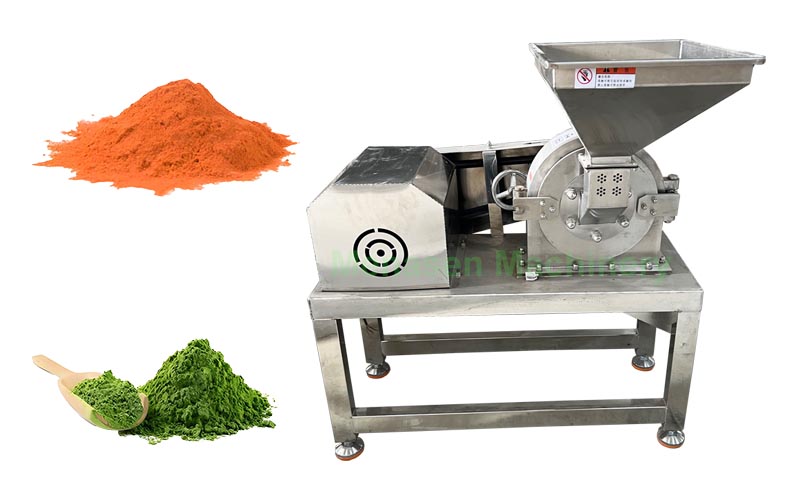

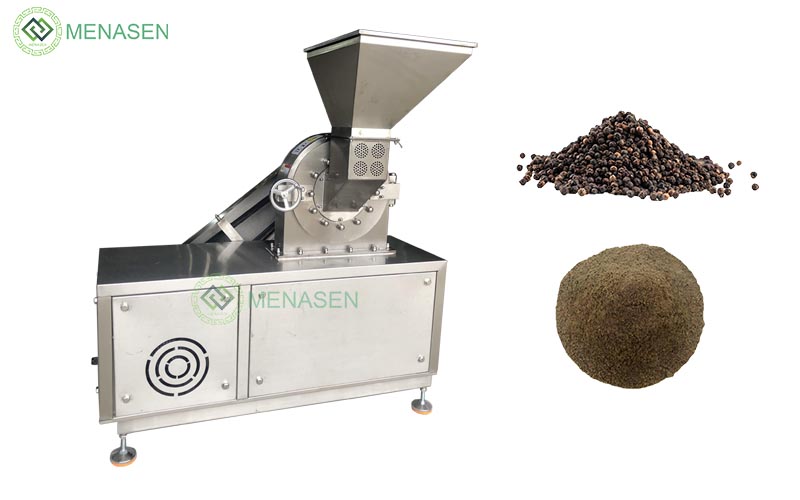

Herb Spice Chilli Anise Cinnamon Pulverizer Grinding Machine
1. SUS304 made
2. Easy to clean
3. Grind speed fast
Chilli Spice pulverizer is widely used in feed, chemical, food and other industries for crushing dried materials. Industrial Pulverizer has the advantages of simple structure, stable operation, fast crushing speed, uniform and good effect.
Pulverizer is made of stainless steel material, the internal surface of the machine is smooth and easy to clean, which has changed the previous shortcomings: easy to accumulate dust and difficult to clean. The machine crushing speed is single, if you need to adjust the crushing speed, you need to add additional electric control cabinet, electric control cabinet has the function of frequency conversion speed regulation, you can adjust the speed and change the sieve mesh for grinding, or grinding particles.
In addition, the cyclone dust collector device can also be selected, the specific configuration, please contact us.
Model: MNS-FS300
Powder Capacity: 70-200 kg/h
Motor: 5.5 KW
Fineness Of Grinding: 10~120 mesh
Granularity Of Feeding: <12 mm
Velocity Of Spindle Rotation: 5700 rpm/ min
Voltage: 380V 3PH 50hz
Net Gross Weight: 130 KG/ 160 KG
Packing Size: 1120*1000*1270 mm
Model: MNS-FS400
Powder Capacity: 100-300 kg/h
Motor: 7.5 KW
Fineness Of Grinding: 10~120 mesh
Granularity Of Feeding: <12 mm
Velocity Of Spindle Rotation: 4500 rpm/ min
Voltage: 380V 3PH 50hz
Net Gross Weight: 165 KG/ 210 KG
Packing Size: 1240*1030*1430mm
Model: MNS-FS500
Powder Capacity: 150-400 kg/h
Motor: 11 KW
Fineness Of Grinding: 10~120 mesh
Granularity Of Feeding: <12 mm
Velocity Of Spindle Rotation: 3900 rpm/ min
Voltage: 380V 3PH 50hz
Net Gross Weight: 250 KG/ 310 KG
Packing Size: 1380*1100*1520mm
Model: MNS-FS600
Powder Capacity: 300-500 kg/h
Motor: 15 KW
Fineness Of Grinding: 10~120 mesh
Granularity Of Feeding: <12 mm
Velocity Of Spindle Rotation: 3200 rpm/ min
Voltage: 380V 3PH 50hz
Net Gross Weight: 270 KG/ 330 KG
Packing Size: 1450*1100*1570mm

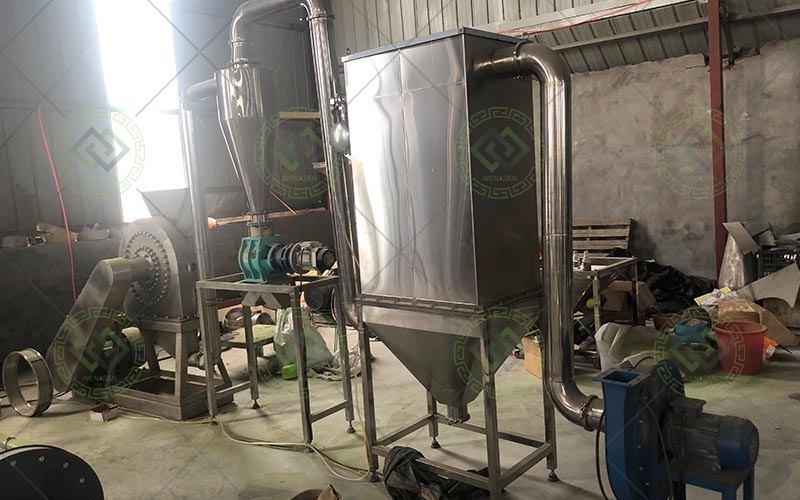

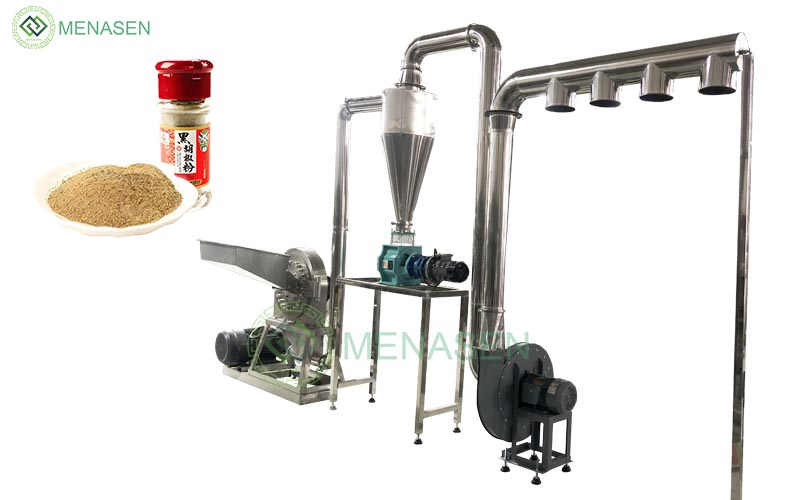

1. Middle level configuration of Pulverizer processing line.

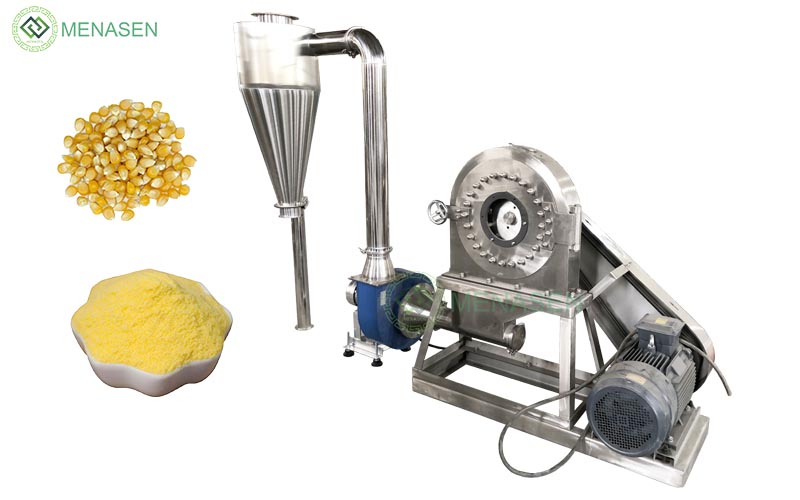

2. Low level configuration of pulverizer.

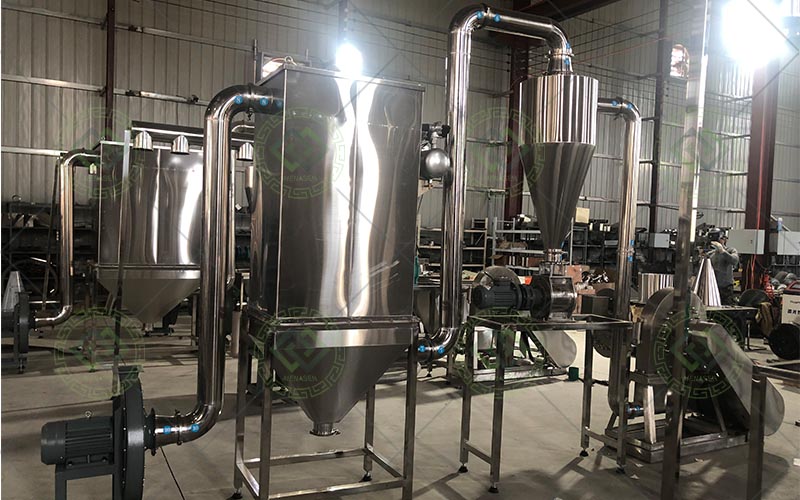

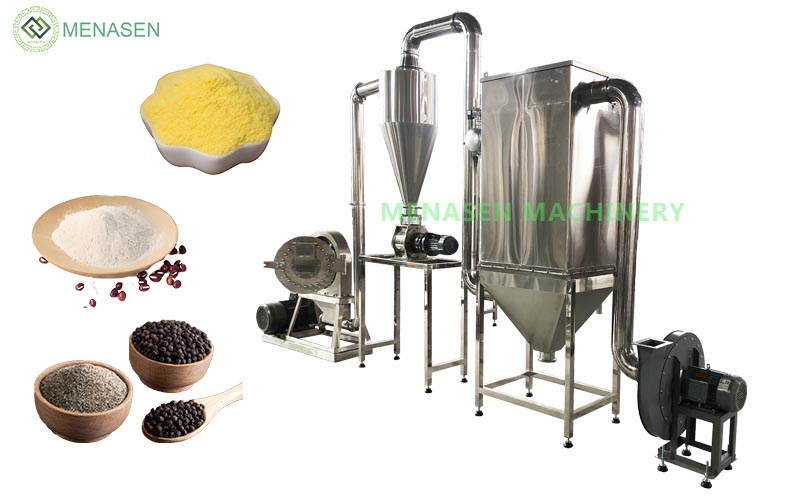

3. High level configuration of pulverizer.

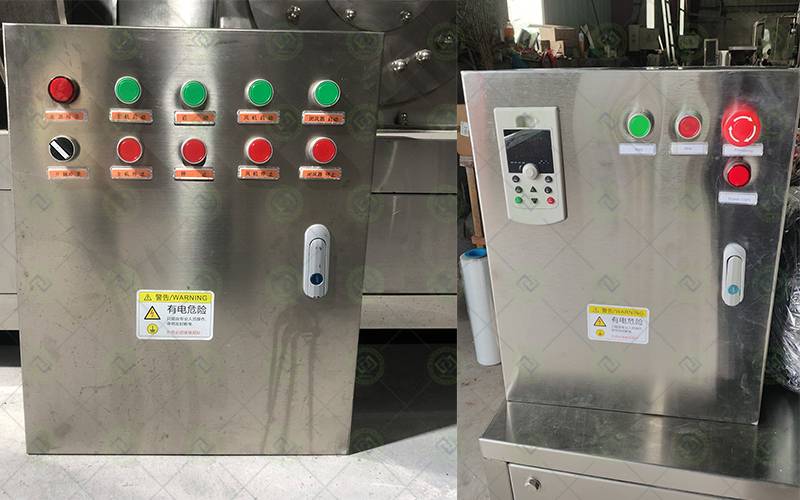

4. We advise clients equip with a control cabinet for product line. Normal and variable frequency adjust speed.
5. Pulverizer working spot. If client don't equip with control cabinet, client need make a cable wire contact with motor.
6. Whole pulverizer is made of SUS304 except motor.

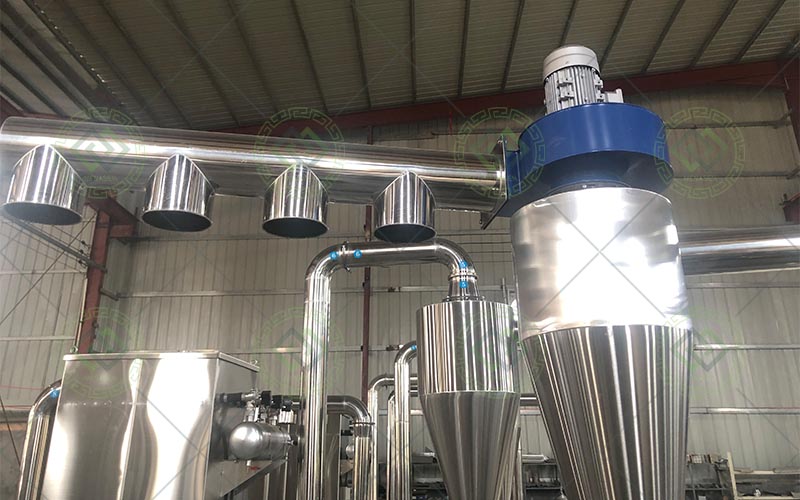

7. Sacron dust removal device: electronic pulse.
8. Black pepper is grainy after grinding.
9. Cinnamon, leaves after grinding, powder.
Automatic pulverizer is used for spice Herb Ginger Turmeric Sugar Cocoa Rice Wheat Flour etc, customer can choose related processing capacity based on needs.
