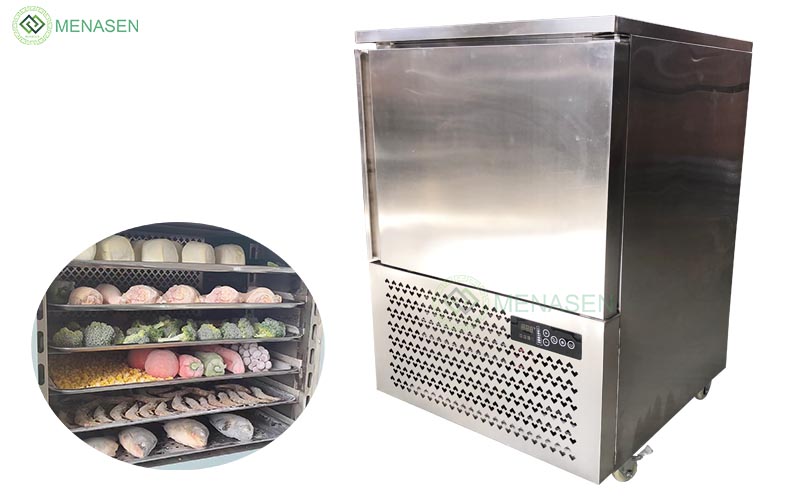

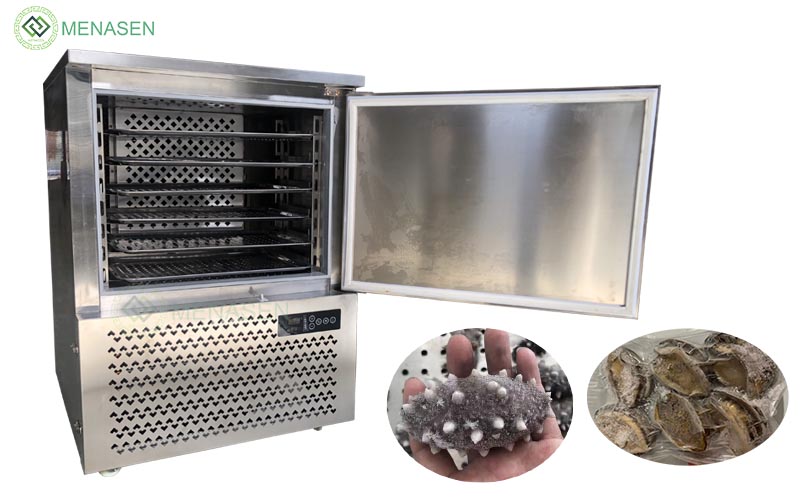

Small Commercial Quick Freezer Machine
1. Commercial Type.
2. Freezing speed fast.
3. Stainless steel made.
4. Small volume, save space.
5. Lead time: 10 days.
No Frost Food Fish Mousse Cake Freezing Blast Freezer Cabinet
1. The quick-freezer is to freeze the center temperature of the frozen items to -18° in a short time, so as to achieve no loss of nutrients, and the phase does not change color.
2. This quick freezer is an efficient freezing device that can freeze a large number of products in a short time. It can effectively and economically freeze a variety of products placed inside the quick-freezer, such as various shapes of meat, fish, shrimp, meatballs, vegetables, and conditioning foods, dairy products, and the like.
Specification
Model | MNS-SD3F | MNS-SD6F | MNS-SD8F | MNS-SD10F | MNS-SD12F | MNS-SD15F |
Power | 1.1 KW | 1.56 KW | 1.96 KW | 2.36 KW | 2.88 KW | 3.28 KW |
Tray Quantity | 3 pcs | 6 pcs | 8 pcs | 10 pcs | 12 pcs | 15 pcs |
Tray Size | 600*400*20 mm | 600*400*20 mm | 600*400*20 mm | 600*400*20 mm | 600*400*20 mm | 600*400*20 mm |
Inside Size | 660*450*350 mm | 660*450*500 mm | 660*450*680 mm | 660*450*840 mm | 660*450*1000 mm | 660*450*1300 mm |
Refrigerating Fluid | R404A | R404A | R404A | R404A | R404A | R404A |
Voltage | 220V 1ph 50HZ | 220V 1ph 50HZ | 220V 1ph 50HZ | 220V 1ph 50HZ | 220V/ 380V | 380V 3ph 50HZ |
Refrigerating Method | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Net Weight | 80 KG | 105 KG | 130 KG | 160 KG | 190 KG | 220 KG |
Gross Weight | 120 KG | 140 KG | 170 KG | 210 KG | 240 KG | 260 KG |
Machine Size | 800*810*970 mm | 800*810*1136 mm | 800*810*1320 mm | 800*810*1572 mm | 800*810*1715 mm | 800*810*1300 mm |
Packing Size | 1000*960*1230 mm | 1000*960*1400 mm | 1000*960*1580 mm | 1000*960*1850 mm | 1000*960*2000 mm | 1000*960*1570 mm |
