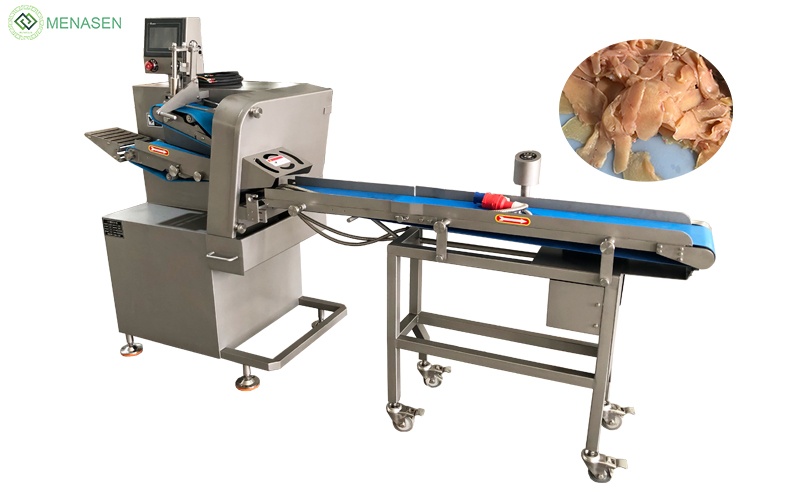

MNS-QP160 Multi-functional Continuous Micro-frozen Mutton Beef Slicer Machine
1. German blades, touchscreen operation
2. Continuous slicing, always working
3. The cutting thickness can be adjusted from 1mm to 30mm
1. German blades, touchscreen operation
2. Continuous slicing, always working
3. The cutting thickness can be adjusted from 1mm to 30mm
1. The Continuous Mutton Beef Slicing Machine adopts the internationally advanced scissor cutting method, equipped with sharp German knives, which can cut perfect thin slices. It has the functions of dividing and stacking, and can cut fresh meat, cooked meat and other products. Mainly used in meat processing enterprises and distribution centers, it can cut various boneless fresh meat (beef and mutton,poultry, aquatic products). 2. It is adopts an upper and lower conveyor belt feeding mechanism, with a feeding conveyor belt width of 160mm; The feeding height is 90mm. The product is cut neatly, easy to operate, and can achieve fast packaging of finished products;Capable of continuous production, high output, and can be matched with workshop assembly line production.
3. Adopting touch screen control and digital size setting, the standard is precise. The feeding and discharging cutting specifications of the conveyor belt can be adjusted according to customer requirements, and the slice thickness can be 1mm-30mm; Cutting temperature -3~+15 ° C; Slices can be divided into sections or consecutively sliced according to requirements.
4. It can quickly disassemble and assemble conveyor belts and blades, facilitate cleaning, and meet food hygiene requirements; The whole machine adopts waterproof design and is made of brushed stainless steel surface, which can be directly rinsed with water.
5. Important components: such as reducers, synchronous motors, and PLC controllers, all of which are imported products to ensure product quality. The main blade motor is imported from Germany, Panasonic Motor from Japan, and Mitsubishi Controller from Germany.
6. German made slicing knife, sharp and durable, with good slicing quality. The machine is equipped with a speed control device,which can adjust the blade speed and conveyor belt speed, and has the functions of dividing and stacking, meeting the diverse needs of customers.
Model: MNS-QP160
Power: 1.25 KW (0.75 KW+0.4KW+0.1 KW)
Voltage: 220V| 380V
Output: Max 260 pcs/ min
Cutting size: 1-30mm (adjustable)
Machine size: 2315*690*1515 mm
Main body: 1150*690*1515 mm
Convey belt: 1550*390*1000 mm
Net weight: 360 KG (300KG+60KG)
Main body+Convey belt.
Feeding height: 90mm, convey belt width: 160 mm
Whole machine 304 stainless steel, PVC convey belt.
Adopt the upper and lower two layers of conveyor belt feeding structure, can be continuous production, high yield, can be matched with the workshop, using a touch screen control, digital size setting, standard accurate.
Important parts: reducer, servo motor, controller PLC, are imported products to ensure product quality, de adjustable knife speed and conveyor belt domestic slicing knife, sharp and durable, slicing quality, the machine is equipped with a speed control device, speed, with portioning and stacking functions, to meet the diversity of customer needs.
