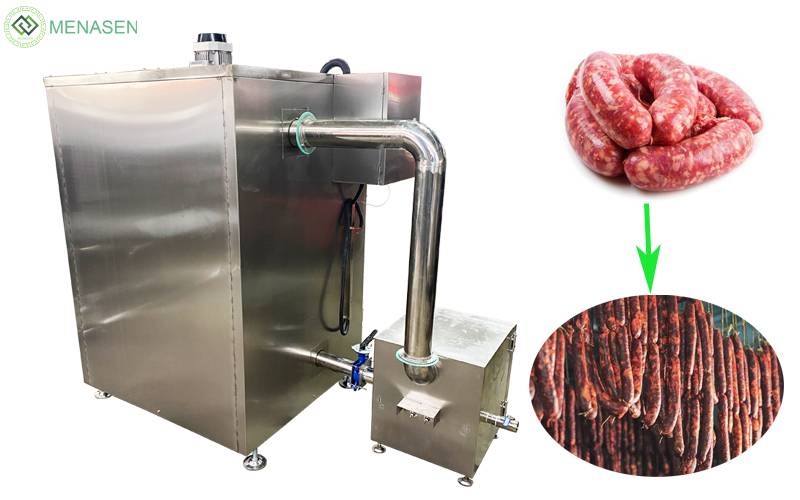

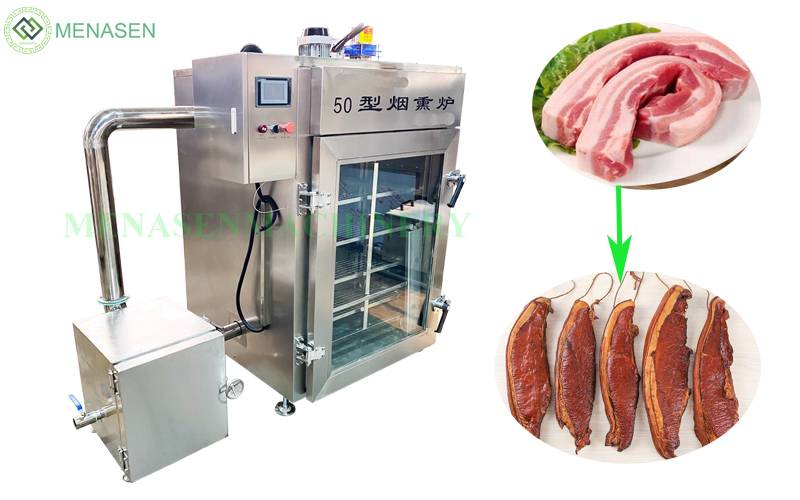

1. Whole machine is made by SUS304 material
2. Machine is automatic and easy to operate
3. Machien can smoke many kinds of meat kinds
4. Smoked Meat, it tastes very good and color is even
5. Save labor and high produce efficiency
6. Voltage can be changed
Smoke oven machine can be used for meat, sausage ,ham, roasted sausage, chicken, fish, roast duck and poultry, aquatic products and other smoked products, cooking, drying, coloring a molding.
Smoked good color and luster, taste better. Quality assurance, excellent technology, convenient operation,after the color of food after smoke look good, still have a kind of fragrance after smoked, feel fragrant and not be bored with, also can achieve environmental protection effect, completely take the place of a traditional smoked furnace method.
1. The computer controlling automatic system can show the curve graphs, the temperature and the running state of each processing.
2. The pneumatic pilot steam valve can accurately control steam flow and temperature, making temperature difference less than 1°C.
3. This Meat Smoking Chamber has multiple functions, such as baking, drying, boiling down, cold smoking, hot smoking, cooling and so on.
Model | MNS-YX50 | MNS-YX100 | MNS-YX150 |
Heat Source | Electric Heating | Electric Heating | Electric Heating |
Produce Capacity | 50KG | 100KG | 150 KG |
Total Power | 16.5 KW | 18KW | 24KW |
High Steam Pressure | / | 0.3-0.6 Mpa | 0.3-0.6 Mpa |
Low Steam Pressure | / | 0.1-0.2 Mpa | 0.1-0.2 Mpa |
Trollery | 1 pcs | 1 pcs | 1 pcs |
Voltage | 380V 3 phase 50HZ | 380V 3 phase 50HZ | 380V 3 phase 50HZ |
Net/ Gross Weight | 400 KG | 600KG | 1000 KG |
Machine Size | 1850*1100*1840 mm | 1850*1200*2200 mm | 2000*1250*2300 mm |
Packing Size | 2100*1280*2120 mm | 2100*1380*2480 mm | 2200*1430*2580 mm |

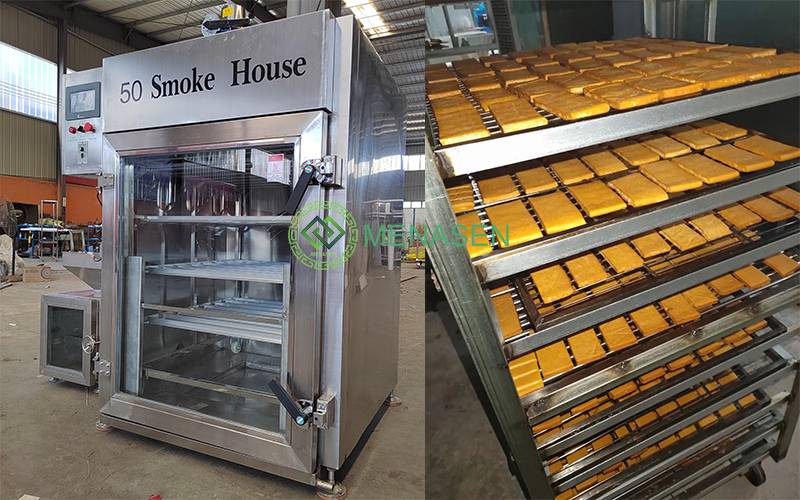

1. Whole machine is made of SUS304 material. Trays can be put beans products.

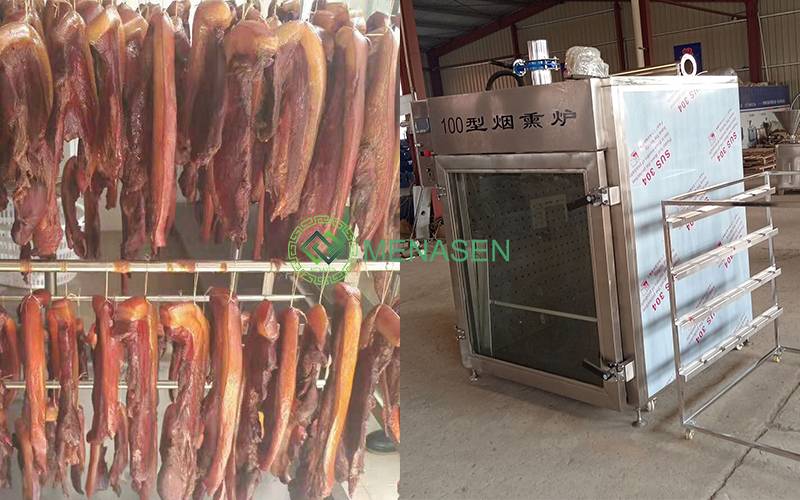

2. Trolleys can be customized let client put pork, beef and sausage.
3. All kinds of food can be smoked, results as picture show.

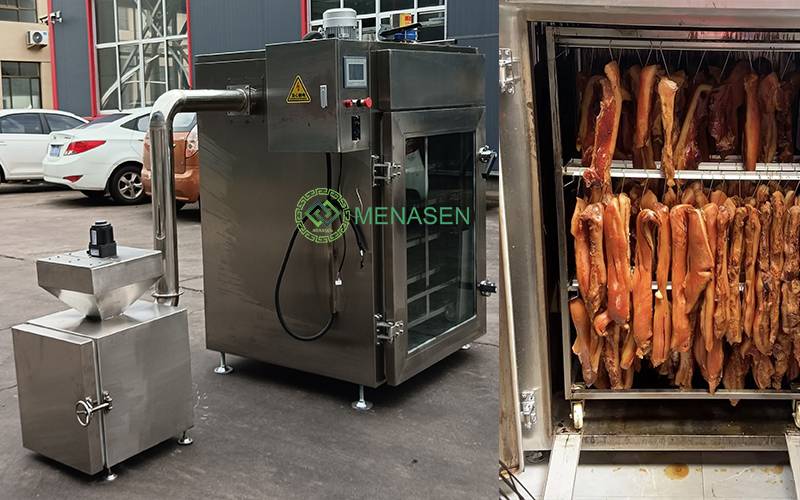

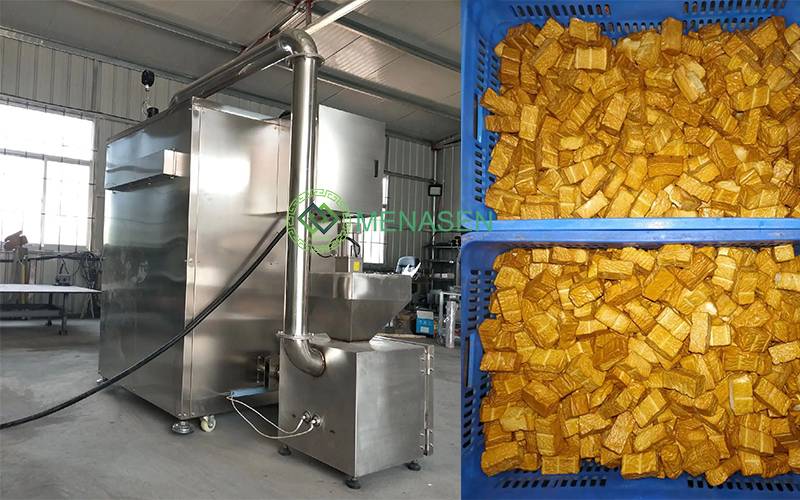

4. There are two kinds of smoke devices, built-in and external, customized according to customer requirements.
1. Furnace Body: All the components inside the furnace body and the outer wall are made of stainless steel, corrosion resistance. Put the products on the trailer, into the furnace body, close the door, you can set the process parameters for cooking and other work.
2. Cooking part: The furnace body design automatically produces steam system, the furnace directly heating products. The output of steam can be adjusted according to different products.
3. Circulation Wind System: the top of the furnace is equipped with two-speed electric fan, high-power and high wind volume to ensure that the furnace heating, so that the temperature uniformity everywhere, to ensure the quality of products stable and reliable.
4. Smoke system: The furnace stored in the smoke of wood chips, sawdust or fructose stored in the Smoke Plate, Button control Panel of the Smoke button, and adjust the time, the smoke will be evenly in the furnace body smoked cooked goods. Use manual ignition, point move feed key to adjust time.
5. Electrical control system: automatic Steam Fumigation box electronic control part of the use of advanced Man-machine interface and programmable controller, automatic control and monitoring of each process. Reliable operation, easy to operate, good waterproof performance.
