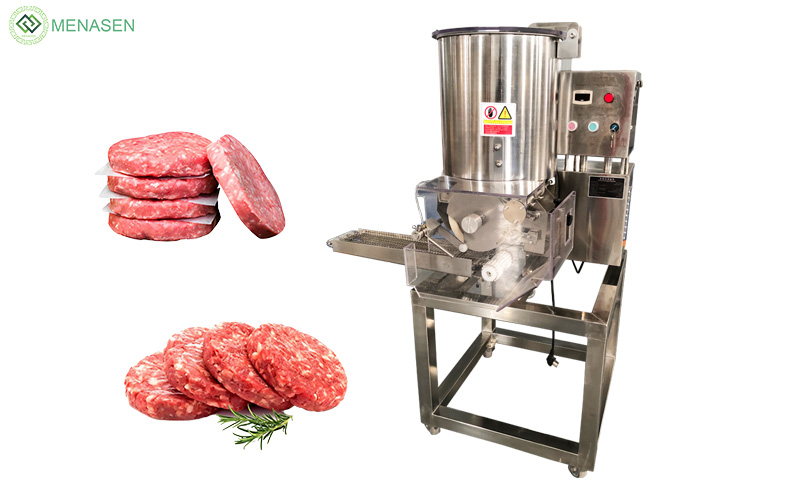

Automatic Hamburger Forming Machine
1. Mould size can be change
2. Stainless Steel Convey Belt
3. Pneumatic Type
4. Meat Patty Maker
1. Mould size can be change
2. Stainless Steel Convey Belt
3. Pneumatic Type
4. Meat Patty Maker

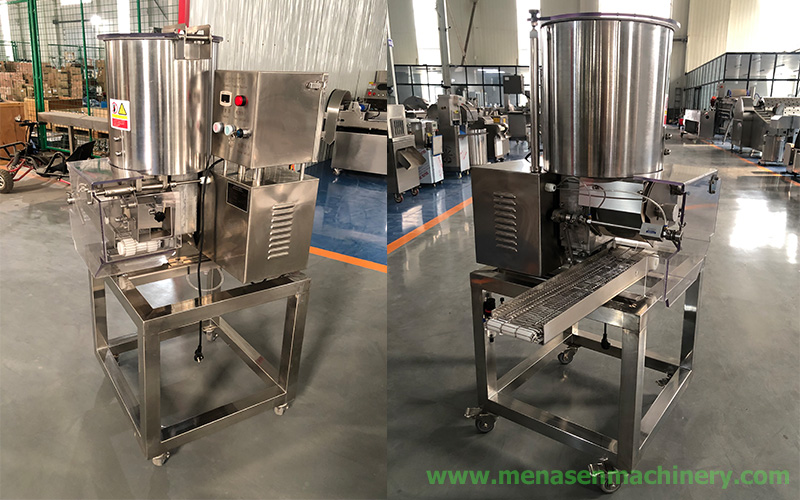

MNS-100 hamburger patty forming machine is designed for efficient and consistent production of burger patties in food processing plants, butcher shops, and commercial kitchens. The machine operates with a pneumatic system and requires an external 30L air compressor, ensuring stable forming pressure and uniform patty shape. Different PP molds can be easily replaced to produce round or square hamburger patties according to production needs. The entire machine is made of food-grade SUS304 stainless steel, providing durability, hygiene, and easy cleaning. Suitable for forming beef, chicken, pork, or mixed meat patties, this hamburger forming machine helps improve productivity, reduce manual labor, and deliver consistent burger patty quality for commercial food processing applications.
Model: MNS-100
Capacity: 35-70 PCS/min (100-300 kg/h)
Power: 0.75 KW
Convey Belt Width: 130mm
Meat Tank Volume: 30L
Meat Patty Diameter: 28-120 mm
Voltage: 220V 50HZ 1PH
Machine Size: 860*600*1400 mm
Net Weight: 100 KG
Pneumatic type, so need extra use a 20-30L air pump.

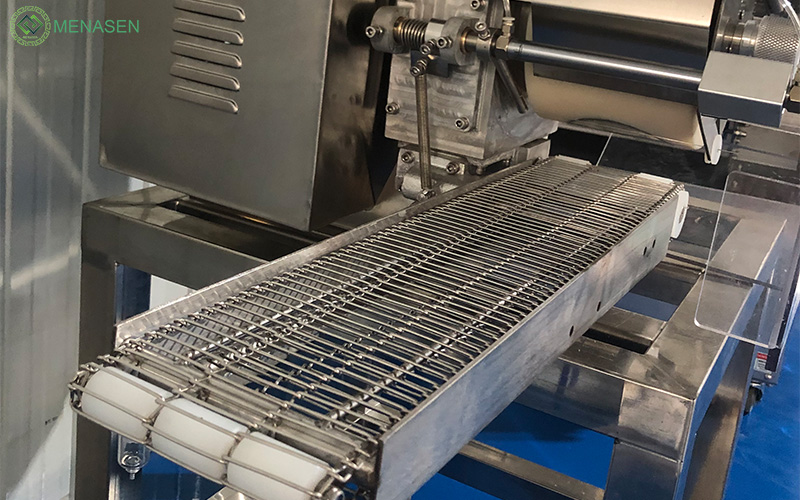

Stainless Steel Convey Belt.

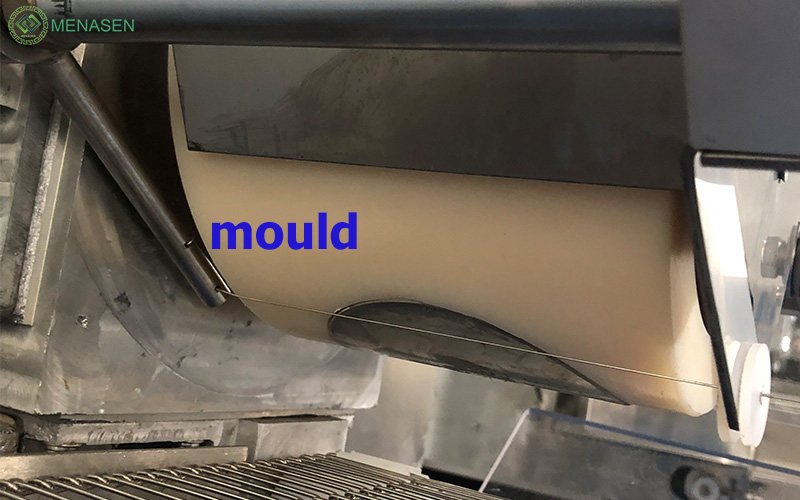

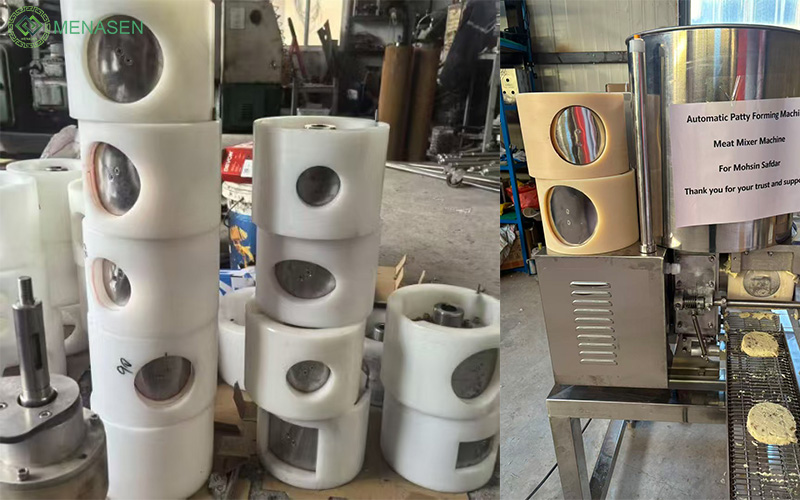

Meat Patty Mould.

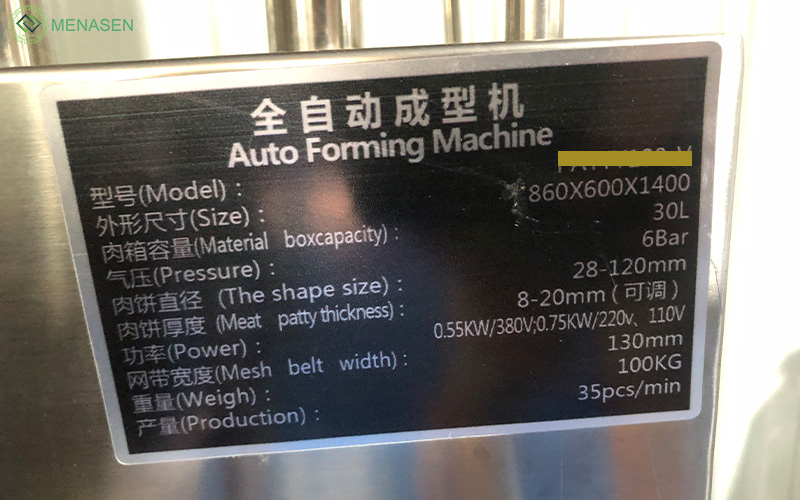

Specification of meat pie maker

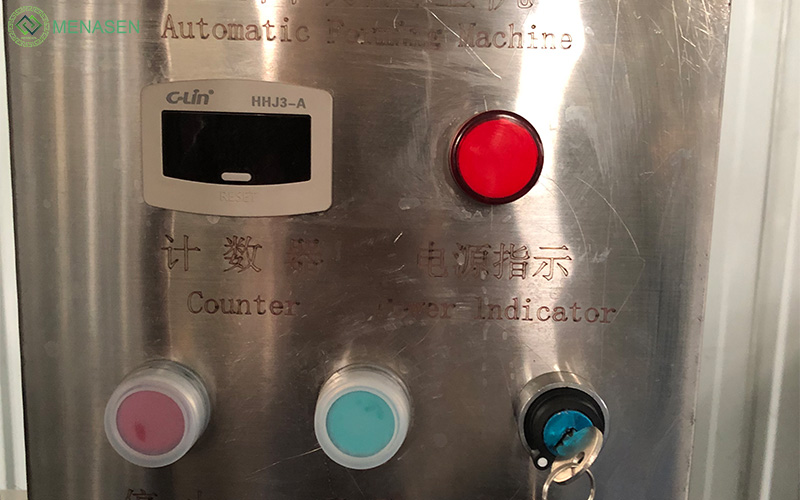

Operation Panel

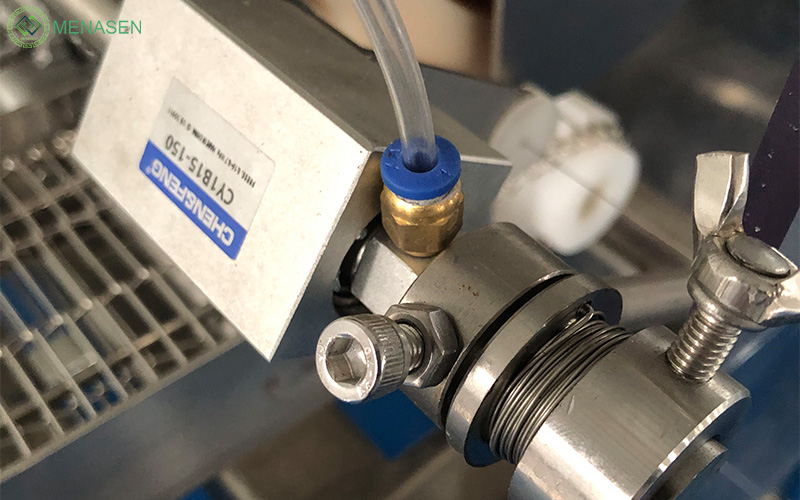

Air Tube connect air pump.
