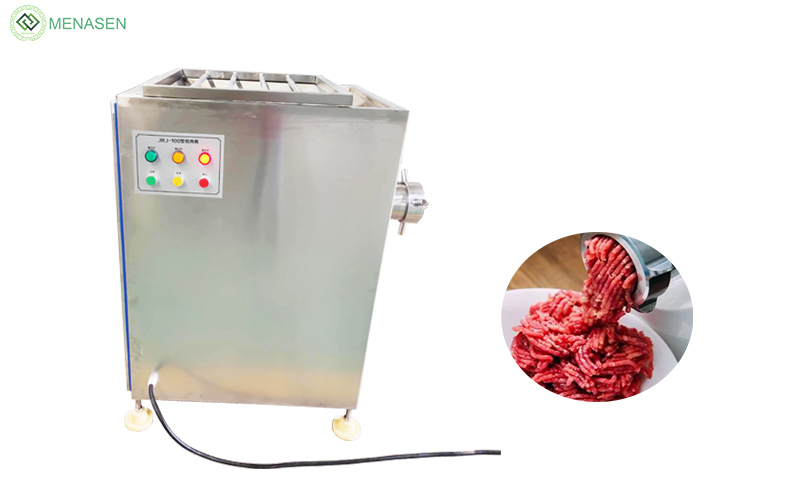

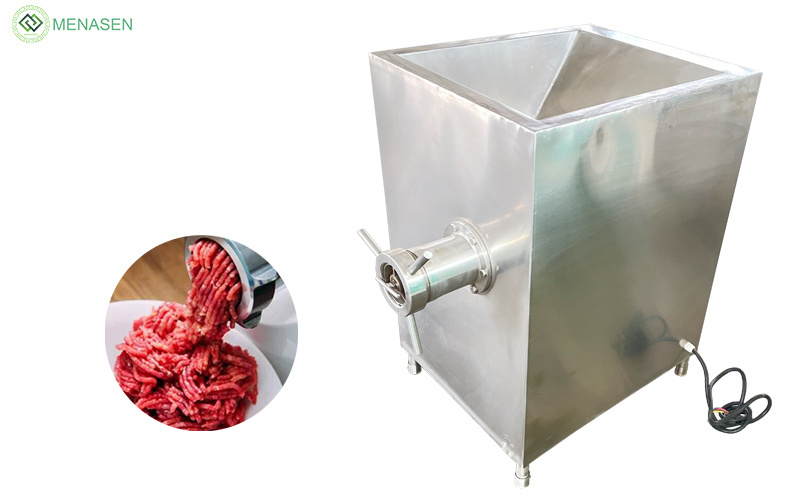

MNS-JR100 Industrial Meat Grinder
1. 304 stainless steel, which is durable and hygienic.
2. Pore plate has many size, could choose.
3. Industrial type, capacity is big.
4. Lead time: 7 days.
The meat grinder machine is an essential meat processing equipment. It can be a thawed meat chopper, made of different specifications Rouli, without prejudice to the muscle fibrous tissue, meat material temperature rise, which will help the product fresh and prolong shelf life. Do preparatory work for chopping or stirring.
Meat mincer mainly relies on the rotating screw to push the raw materials in the hopper box to the pre-cut hole plate, and the shearing action formed by the rotating cutting edge and the hole edge of the hole plate is used the raw material is shredded and the raw material is continuously discharged outside the machine under the action of screw extrusion force. The machine can process different sizes of particles according to the different material properties and processing requirements, and the corresponding cutting tools and orifice plates, to meet the process requirements of the next process.
Capacity: 300-500 KG/H
Total Power: 4 KW
Voltage: 220V 1PH 50HZ
Material: SUS304
Net weight: 200 KG
Gross weight: 240 KG
Machine size: 800*600*1000 mm
Packing size: 920*780*1280 mm
Capacity: 500-1000 kg/h
Total Power: 7.5 kw
Voltage: 380V 3ph 50HZ
Material: SUS304
Net weight: 300 KG
Gross weight: 360 KG
Machine size: 950*620*1100 mm
Packing size: 1150*750*1380 mm
Capacity: 800-1500 kg/h
Total Power: 11 kw
Voltage: 380V 3ph 50HZ
Material: SUS304
Net weight: 400 KG
Gross weight: 470 KG
Machine size: 1200*750*1150 mm
Packing size: 1400*920*1450 mm
Capacity: 2000-4000 KG/H
Total Power: 15 KW
Voltage: 380V 3PH 50HZ
Material: SUS304
Net weight: 600 KG
Gross weight: 690 KG
Machine size: 1160*900*1270 mm
Packing size: 1360*1080*1580 mm
1. Whole machine is made of stainless steel. Easy to wash and corrosion-proof.

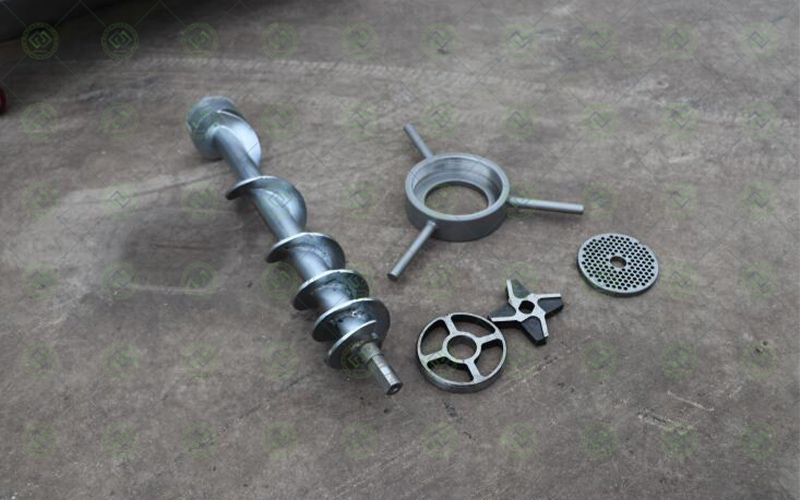

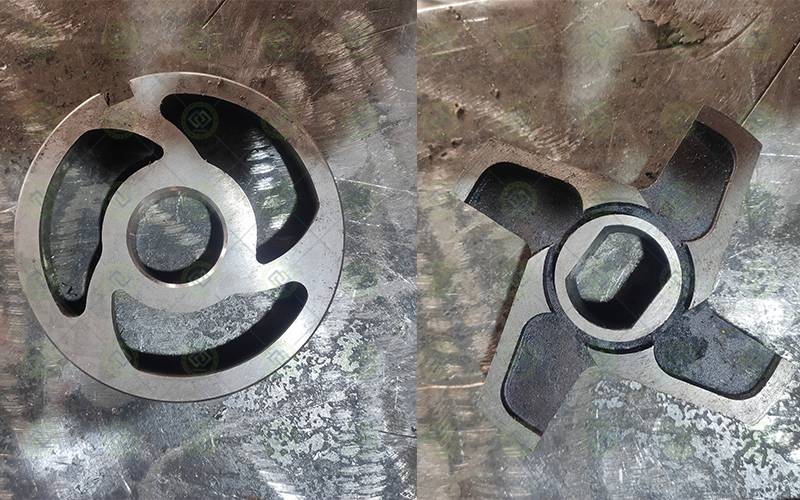

2. Three kinds of blade finish this process procedure. Pre-cutting blade, cross blade.

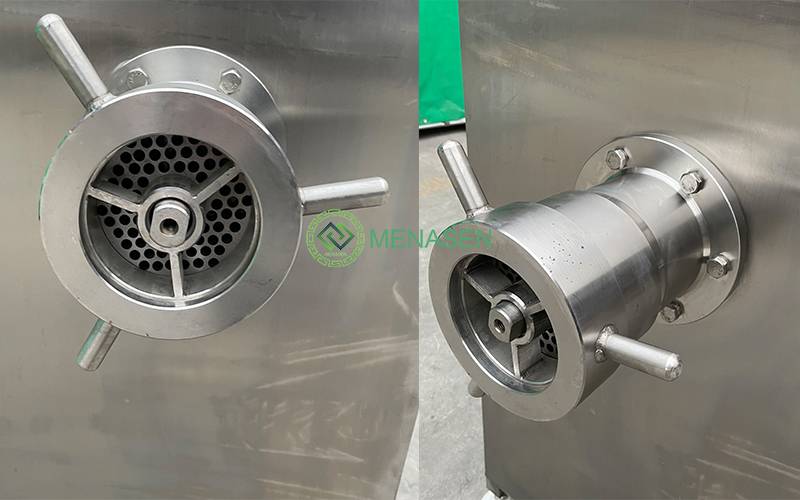

3. Pore plate of meat mincer is last blade.

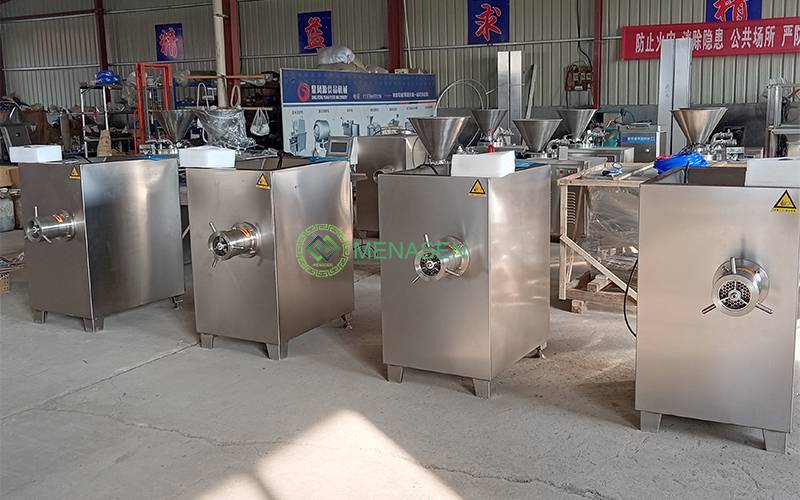

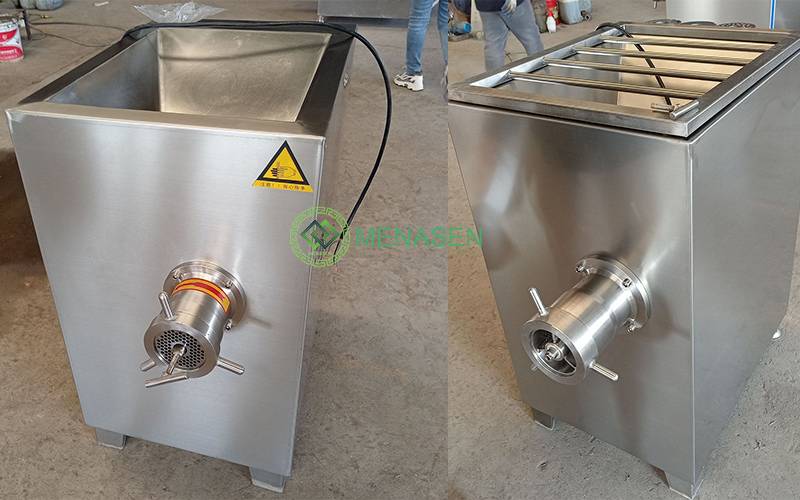

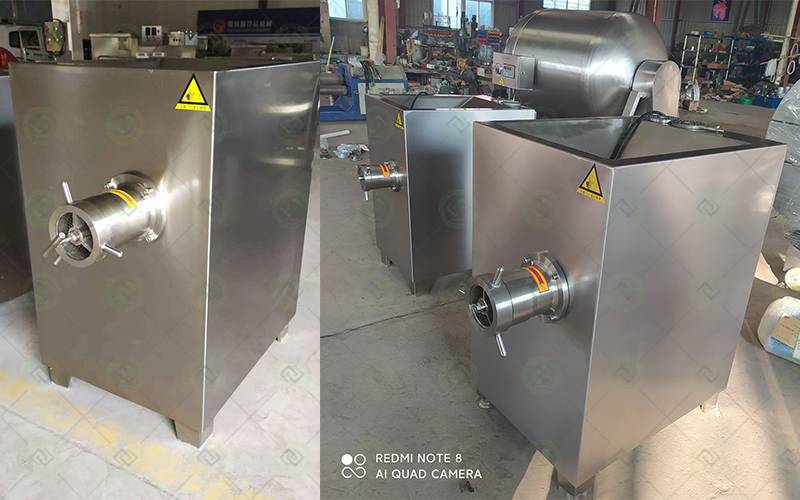

4. Industrial meat grinding machine display.

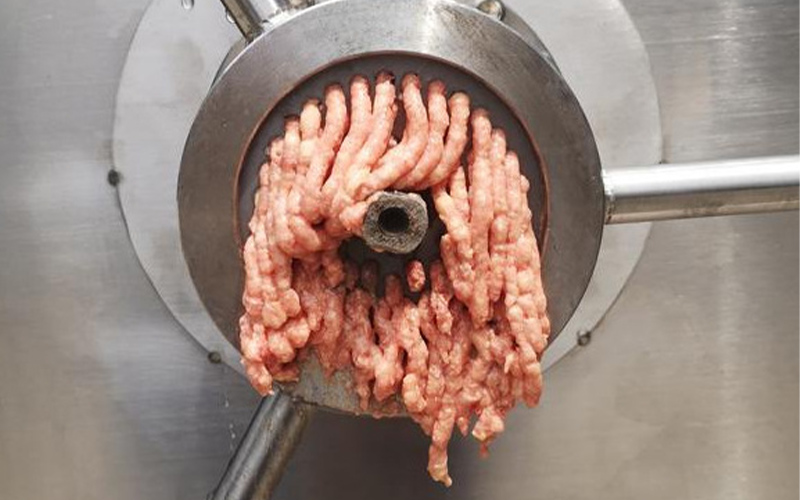

5. Grinding situation.
The screw pushes the raw meat in the hopper to the pre-cutting knife, where rotation and pressure create relative motion between the perforated plate and the grinding knife, cutting the raw meat into granules and ensuring the uniformity of the minced meat. Different combinations of perforated plates can achieve various granule sizes as required. The grinding process is quick and generates low heat, which helps with freshness and extends shelf life.
