Industrial Ice Block Making Machine
1. Voltage can be customized
2. Ice Brick 10KG
3. SUS304 material
4. Plywood Case package
5. Lead time: 10 days

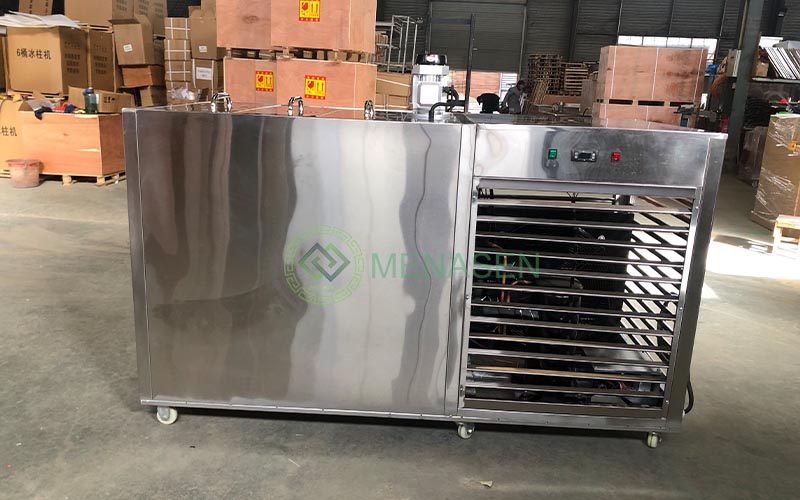

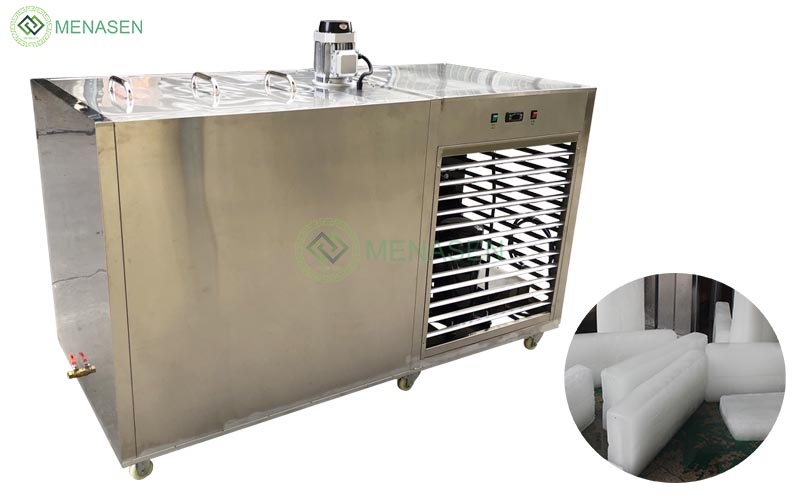

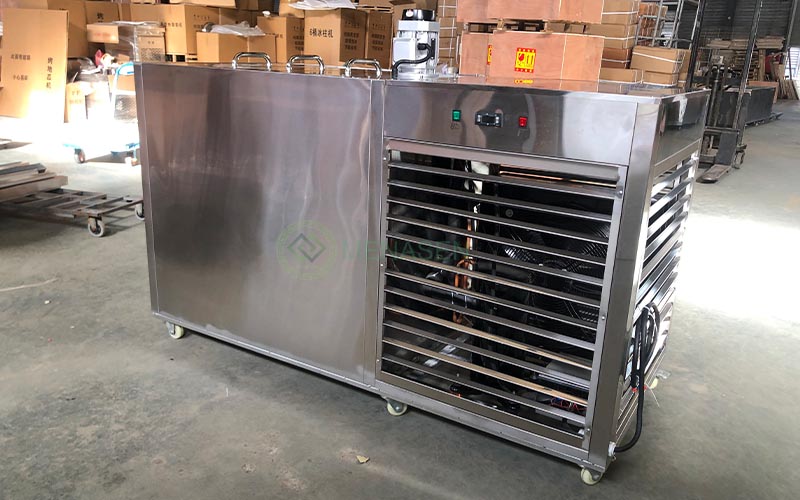

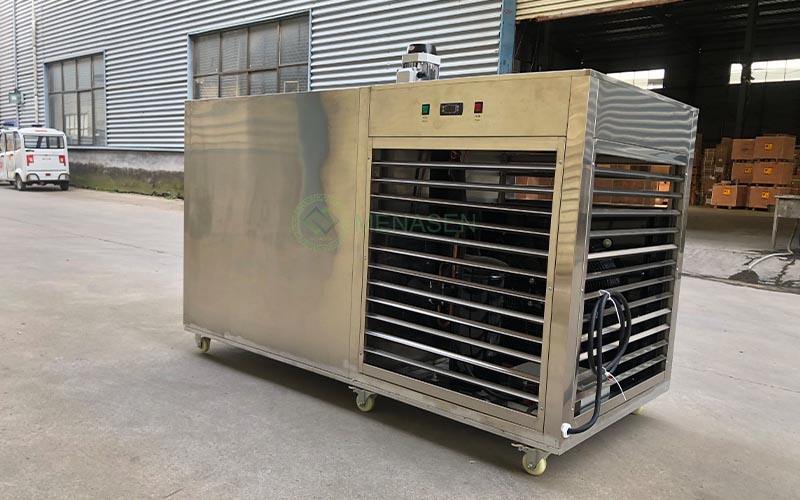

Ice block making machine is a piece of equipment used to freeze large ice cubes/ block/ brick. Ice block making machine has a microcomputer control system, which can control the temperature more accurately. It has the characteristics of high-speed refrigeration, rapid prototyping, easy operation, and silent operation. The shape and size of the mold can be customized to meet all customer requirements, making it and ideal ice-making equipment. Specifically for Africa, the Middle East and Oceania region with ice requirements and developed a highly efficient new unit. The unit adopts the integrated design, installation is very convenient and can be used after the power supply is connected.
All equipment size according to the standard size of international cargo container for design, design or directly into container form, very convenient for transportation.
| Model | MNS-BZ300 | MNS-BZ500 | MNS-BZ1000 | MNS-BZ1500 |
Capacity | 300 KG/H | 500 KG/H | 1000 KG/H | 1500 KG/H |
Power | 3 KW | 3.4 KW | 6 KW | 8 KW |
Cooling Time | 4-6 h/ Batch | 4-6 h/ Batch | 4-6 h/ Batch | 4-6 h/ Batch |
Ice Brick Size | 220*80*650 mm | 220*80*650 mm | 220*80*650 mm | 220*80*650 mm |
Ice brick Quantity | 6 pcs/ time | 8 pcs/ time | 18 pcs/ time | 25 pcs/ time |
Ice Brick Net Weight | 10 KG | 10 KG | 10 KG | 10 KG |
Voltage | 220V 3ph 50HZ | 380V 3ph 50HZ | 380V 3ph 50HZ | 380V 3ph 50HZ |
Net Weight | 120 KG | 150 KG | 230 KG | 290 KG |
Gross Weight | 170 KG | 220 KG | 290 KG | 360 KG |
Machine Size | 1430*512*1320mm | 1530*630*1320mm | 1760*860*1320mm | 2460*740*1320mm |
Packing Size | 1550*620*1480mm | 1650*760*1480mm | 1970*1050*1480mm | 1670*940*1480mm |
1. Have stainless steel or high quality color steel box: luxury generous, beautiful and practical
2. High efficiency compressor, refrigeration fast, low energy consumption, import control valve parts, durable.
3. Digital temperature display: precisely adjust the temperature in the cabinet
4. Polyurethane foam layer: effective heat preservation, reduce energy consumption
5. Direction wheel design. Easy to move
6. Thicken insulation, energy saving province electricity.
