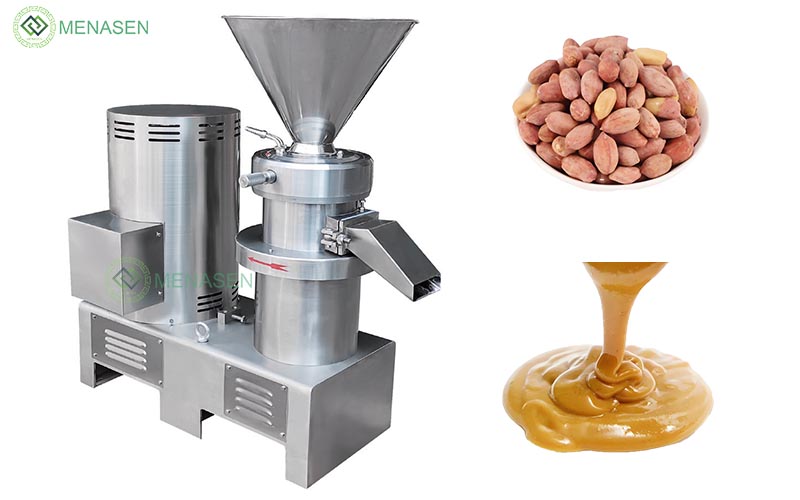

MNS-GN Electric Peanuts Butter Sesame Paste Almond Cashew Colloid Mill
1. SUS304 material
2. 50-100 mesh, adjustable
3. Lead time: 7 days
1. SUS304 material
2. 50-100 mesh, adjustable
3. Lead time: 7 days
Electric Colloid mill is a machine for fine grinding and crushing of fluid and semi-fluid materials. It is maily used to crush material into paste, like peanut, sesame , Cocoa, almond etc. The final paste is more fine and have big capacity. All the parts connecting with raw material are Stainless Steel.
Model | MNS-GN80 | MNS-GN110 | MNS-GN130 | MNS-GN180 |
Capacity | 50-80 KG/H | 100-120 KG/H | 300-500 KG/H | 400-800 KG/H |
Power | 4 KW | 7.5 KW | 11 KW | 18.5 KW |
Grind Fineness | 50-100 mesh | 100-200 mesh | 100-200 mesh | 100-200 mesh |
Voltage | 380V | 380V | 380V | 380V |
Net Weight | 150 KG | 175 KG | 285 KG | 340 KG |
Gross Weight | 180 KG | 220 KG | 330 KG | 385 KG |
Machine Size | 640*410*900mm | 700*430*980mm | 830*440*1100mm | 830*490*1100mm |
Packing Size | 800*570*1150mm | 870*580*1240mm | 1030*610*1350mm | 1030*670*1370mm |

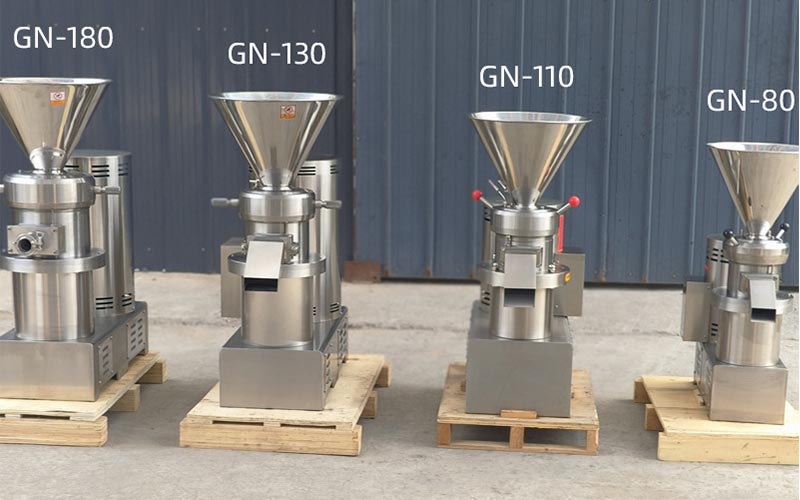

Model Choose

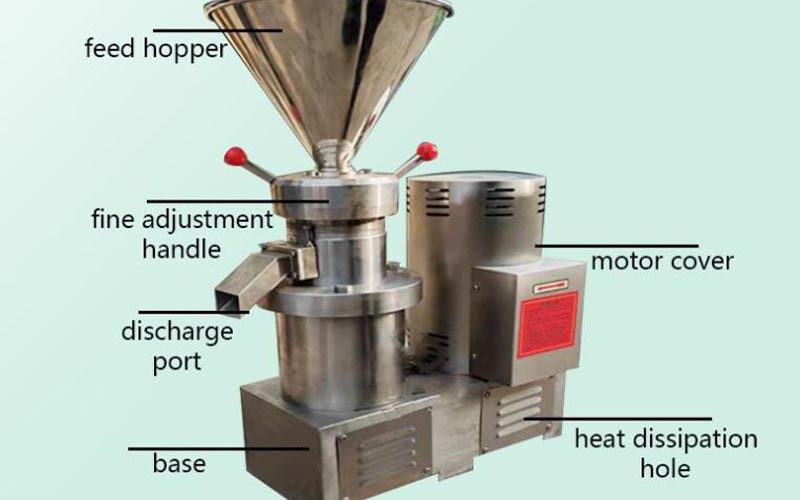

Machine schematic diagram

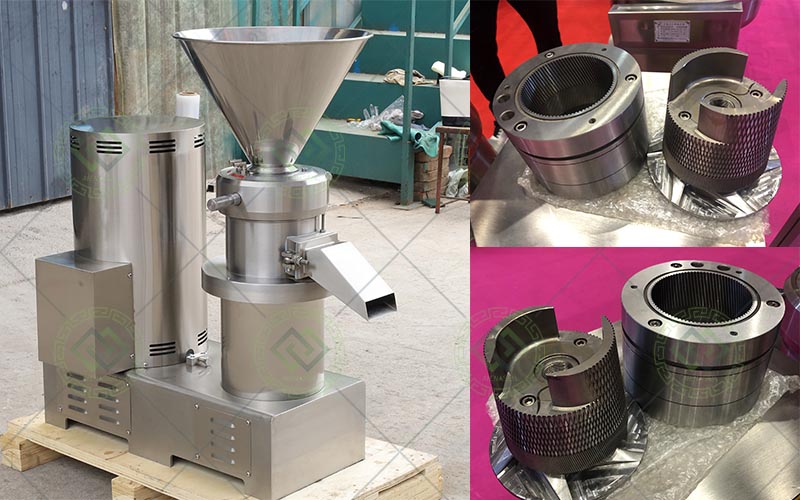

Overall and grinding head display

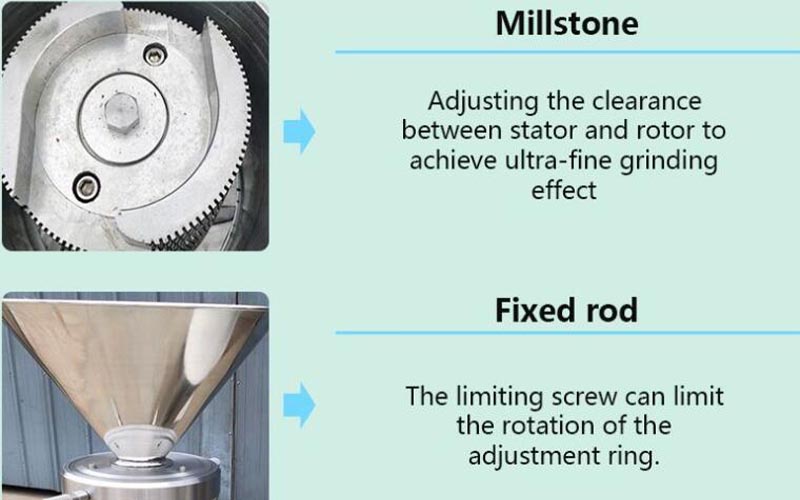

The fluid and semi-fluid material pass through the rotor and stator which are relatively linked at high speed. The material is subjected to strong shearing and frictional force, and under the action of high-frequency vibration and high-speed vortex, will be effectively crushed, emulsified, homogenized and mixed, so as to obtain the required fine grinding fineness.
The high-speed shearing force of the stator and rotor at 3000 rpm, can effectively ensure the quality and effect of the slurry.
