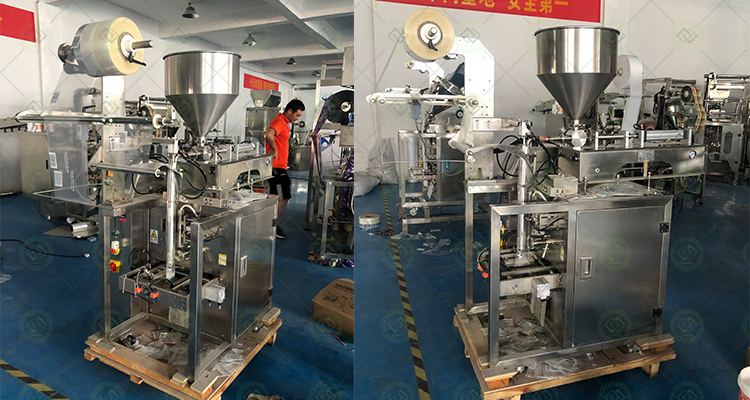

MNS-YG100 Tomato Sauce Chili Sauce Soybean Paste Packing Machine
1. Packing speed fast
2. Automatic Measuring & Cutting
3. Lead time: 15 days
1. Packing speed fast
2. Automatic Measuring & Cutting
3. Lead time: 15 days
Liquid paste Filling Packaging Machine is a kind of equipment specially used for packaging paste or liquid products. It is widely used in many industries, including food, medicine, chemical industry, etc.
The main function of the liquid packaging machine is to automatically complete the operations of measuring, filling, sealing and cutting of paste materials. It is suitable for packaging various liquid products.
Model | MNS-YG100 |
Filling Capacity | 1-100 ml |
Packing Speed | 1800-3000 bags/h |
Film Width | ≤300 mm |
Finished bag size | Length: 50-190 mm |
Width: 30-140 mm | |
Power | 1 KW |
Voltage | 220V/ 380V 50HZ |
Net Weight | 185 KG |
Gross Weight | 260 KG |
Machine Size | 830*900*1600 mm |
Packing Size | 1050*1080*1880 mm |
1. The machine is suitable for all the liquid product packaging: Tomato sauce ,Soy Sauce,Water,Honey Stick, Jelly Stick, Milk, Shampoo, Shower Gel and etc.
2. All the works of bag making, measuring, filling, sealing, cutting and counting can be done automatically, at the same time, it can also according to the demand of customers printing batch number and other functions.
3. The touch screen operation, PLC control, drive stepper motor to control the bag length, stable performance, easy to adjust and accurate detection. Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.
4. Packing material: BOPP/ Polyethylene, Aluminium/ Polyethylene, Paper/ Polyethylene, Polyester/ Aluminizer/ Polyethylene, Nylon/CPP and ect.

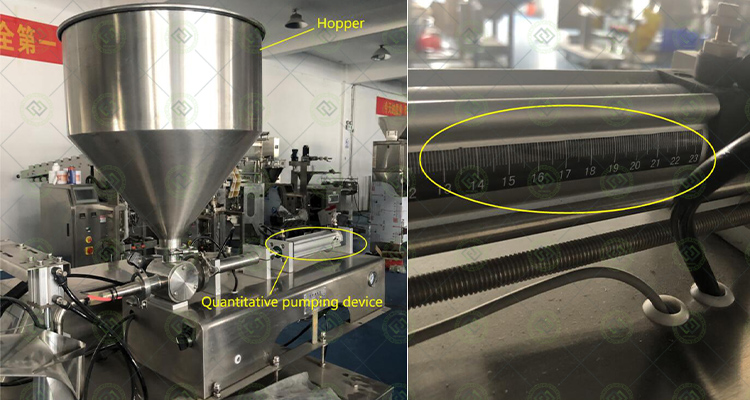

The quantitative pumping device can quantitatively extract the liquid or paste and then fill the inside of the plastic bag. The customer needs to prepare an additional 1500w air pump.

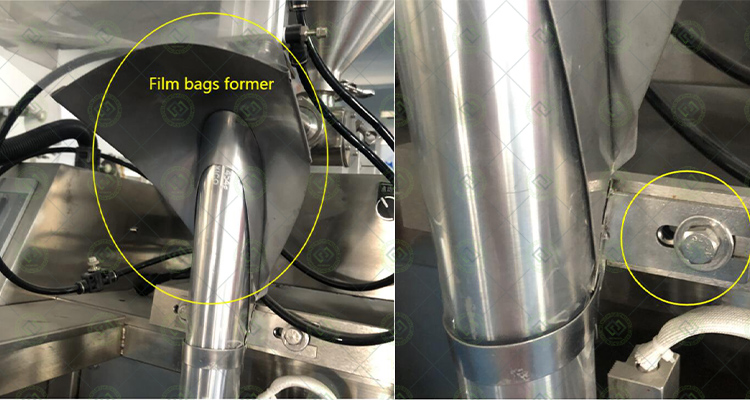

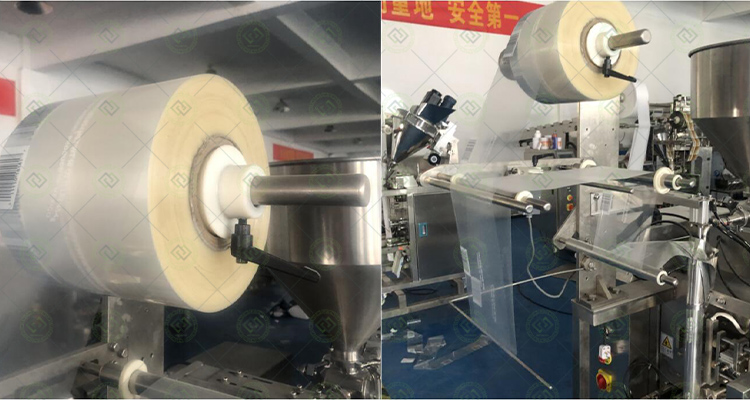

Notice: Film rolling width ≤300mm. One kind width of film rolling need match a film bags former.
Like 200mm film rolling need match 200mm bags former. 250mm film rolling need match 250mm bags former. 300mm film rolling need match 300mm bags former. Bags former can be replaced.
Notice: Please confirm your finished bags packing way. Because one set of machine only use one packing way, can not change.

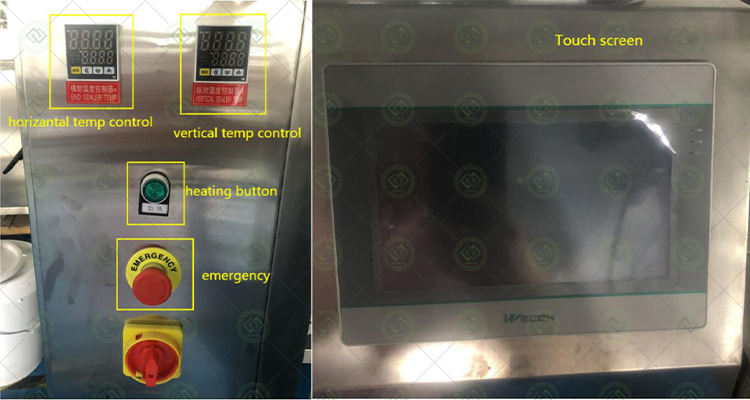

Notice: paste packing machine is equipped with touch screen for easy to operate. English version.
This MNS-YG100 only suitable for less than 100ml.

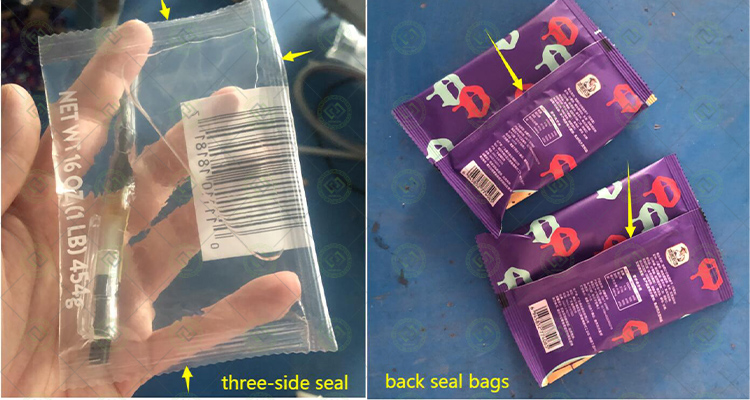

Thee-sides-seal or back seal, only choose one kind.
This YG100 only suitable for film width less than 300mm.
Transparent film and colorful film, configuration will be have some difference.
